SM8S24CA-Q1

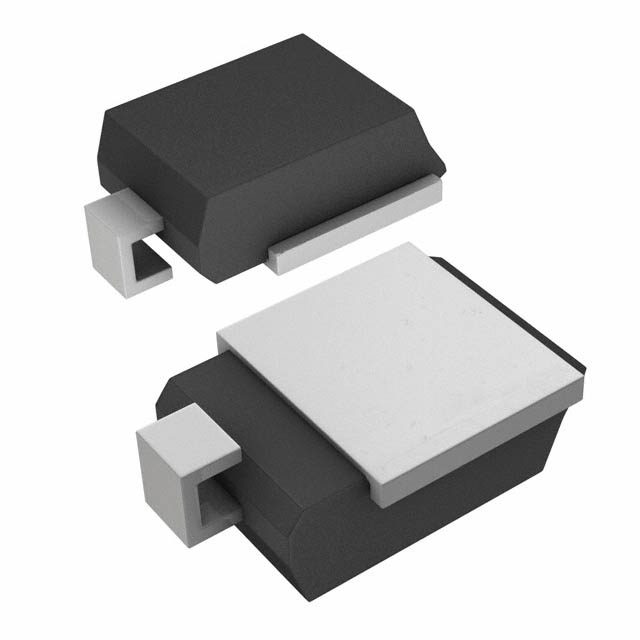

lmages are for reference only.SM8S24CA-Q1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-218AB
85,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38.9V Clamp 170A Ipp Tvs Diode Surface Mount DO-218AB
SM8S24CA-Q1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 38.9V |
| Current - Peak Pulse (10/1000µs) | 170A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | SM8S24CA-Q | SM8S24CA | SM8S24CA | SM8S24CA-TP |
| Manufacturer | Bourns Inc. | MDD | SMC Diode Solutions | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 24VWM 38.9VC DO218 | TVS DIODE BI 24VWM DO218AB | TVS DIODE 24VWM 38.9VC DO218AB | Interface |
| Series | Bourns Inc. | MDD | SMC Diode Solutions | Micro Commercial Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
