SM9336-BCE-S-250-000
lmages are for reference only.SM9336-BCE-S-250-000
SENS 0.04PSID 0.12" 16BIT 16SOIC
Datasheet16-SOIC Module, Dual Top Ports
84,212 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -0.03PSI ~ 0.04PSI (-0.2kPa ~ 0.25kPa) Differential Male - 0.12" (3mm) Tube, Dual 16 b 16-SOIC Module, Dual Top Ports
SM9336-BCE-S-250-000
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | SM9336 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | -0.03PSI ~ 0.04PSI (-0.2kPa ~ 0.25kPa) |
| Output Type | I2C |
| Output | 16 b |
| Accuracy | ±1.5% |
| Voltage - Supply | 3V ~ 5.5V |
| Port Size | Male - 0.12" (3mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 1.02PSI (7kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC Module, Dual Top Ports |
| Supplier Device Package | SOIC-16 Dual |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

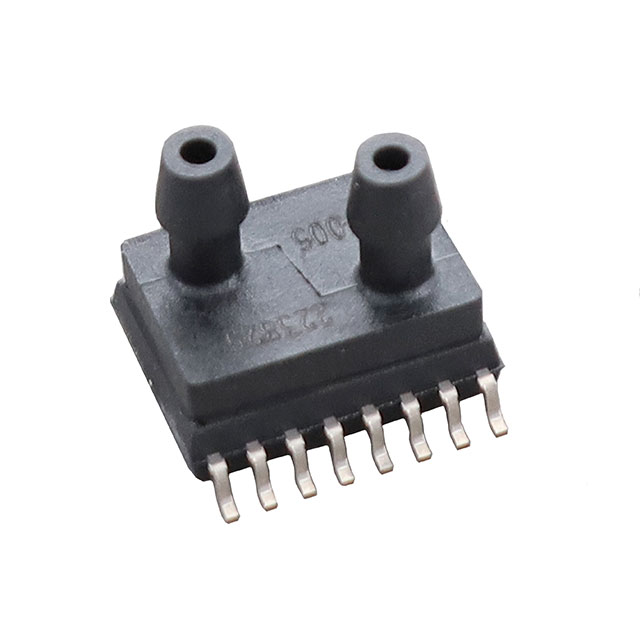

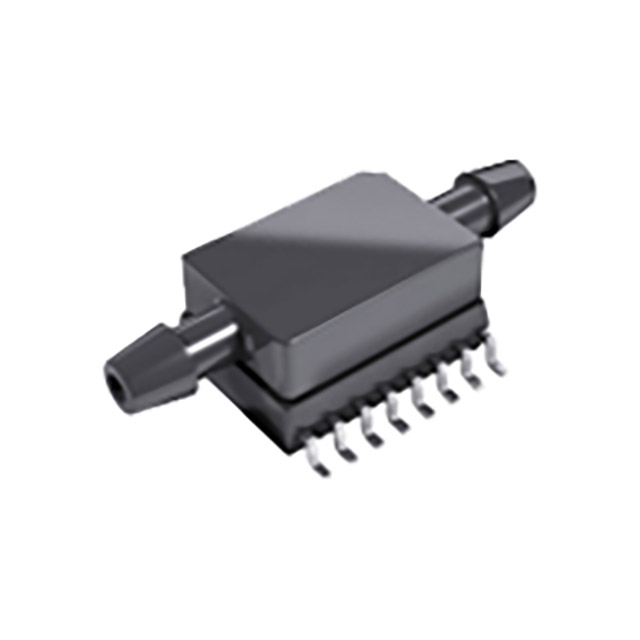

| Part Number | SM9333-BBE-S-125-000 | SM9333-BBE-S-125-000 | SM9333-BCE-S-125-000 | SM9333-BCE-S-125-000 |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 0.02PSID 0.12" 16BIT SOIC | SENSOR 0.02PSID 0.12" 16BIT SOIC | SENS 0.02PSID 0.12" 16BIT 16SOIC | SENS 0.02PSID 0.12" 16BIT 16SOIC |
| Series | SM9333 | SM9333 | SM9333 | SM9333 |
| Packaging | Box | Box | Box | Box |
