SMA4F20A
lmages are for reference only.SMA4F20A
TVS DIODE 20VWM 42.8VC SMAFLAT
DatasheetDO-221AC, SMA Flat Leads
24,677 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
42.8V Clamp 12.3A Ipp Tvs Diode Surface Mount SMAflat
SMA4F20A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | SMA4F, TRANSIL™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 20V |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 42.8V |
| Current - Peak Pulse (10/1000µs) | 12.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat |
| Base Product Number | SMA4F20 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

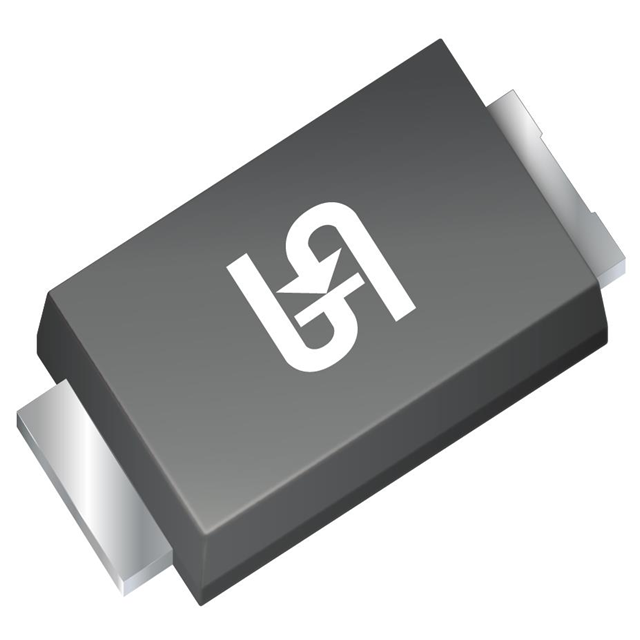

| Part Number | SMA4F20AH | SMA4F20AH MWG | SMA4F20AY | SMA4F100A |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 400W, 23.6V, 5%, UNIDIRECTIONAL, | 400W, 23.55V, 5%, UNIDIRECTIONAL | TVS DIODE 20VWM 32.4VC SMAFLAT | TVS DIODE 100VWM 162VC SMAFLAT |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
