SMA4S21AH

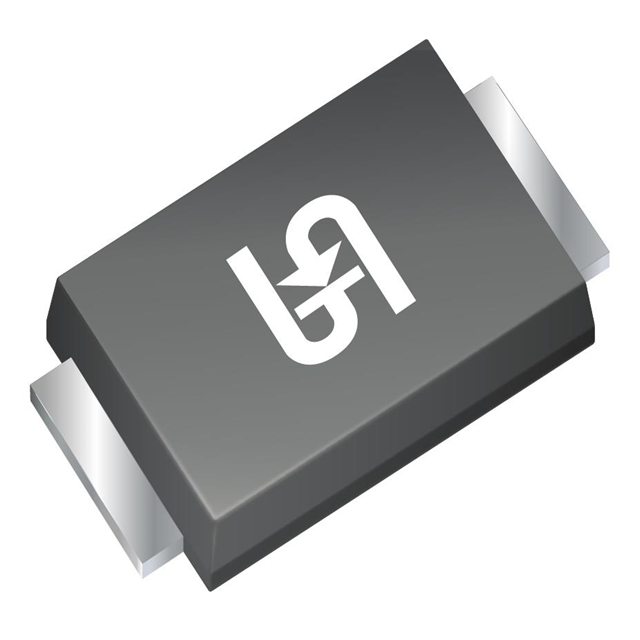

lmages are for reference only.SMA4S21AH
TVS DIODE 21VWM 34.1VC SOD128
DatasheetSOD-128
23,102 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
34.1V Clamp 11.7A Ipp Tvs Diode Surface Mount SOD-128
SMA4S21AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 21V |
| Voltage - Breakdown (Min) | 23.5V |
| Voltage - Clamping (Max) @ Ipp | 34.1V |
| Current - Peak Pulse (10/1000µs) | 11.7A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-128 |
| Supplier Device Package | SOD-128 |
| Base Product Number | SMA4S21 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
 |
|
| Part Number | SMA4S20AH | SMA4S22AH | SMA4S24AH | SMA4S25AH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 20VWM 32.5VC SOD128 | TVS DIODE 22VWM 35.7VC SOD128 | TVS DIODE 24VWM 39VC SOD128 | TVS DIODE 25VWM 40.6VC SOD128 |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
