SMA561YG G/W
lmages are for reference only.SMA561YG G/W
0.56" SGL SMD DISPLAY - Y-GREEN
Datasheet10-SMD, No Lead
75,763 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 1 Character Common Anode 2.1V 20mA 0.669" H x 0.492" W x 0.161" D (17.00mm x 12.50mm x 4.10mm) 10-SMD, No Lead
SMA561YG G/W
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.669" H x 0.492" W x 0.161" D (17.00mm x 12.50mm x 4.10mm) |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Millicandela Rating | 10mcd |
| Wavelength - Peak | 570nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | SMA561 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

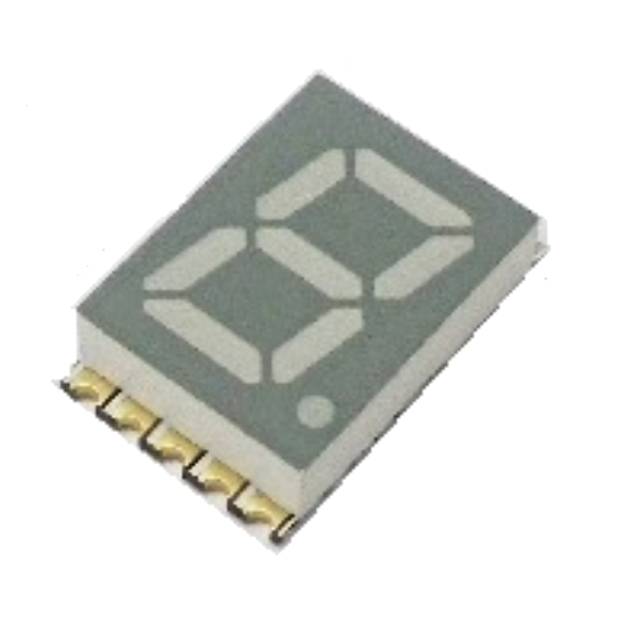

| Part Number | SMA561B-ST1.5 | SMA561LA G/W | SMA561LB G/W | SMA561LE G/W |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ULTRA THIN 7SEG 0.56" BLUE 8SMD | 0.56" SGL SMD DISPLAY - AMBER | 0.56" SGL SMD DISPLAY - BLUE | 0.56" SGL SMD DISPLAY - RED |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
