SMA6F6.0A
lmages are for reference only.SMA6F6.0A
TVS DIODE 6VWM 10.3VC SMAFLAT
DatasheetDO-221AC, SMA Flat Leads
99,036 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10.3V Clamp 61A Ipp Tvs Diode Surface Mount SMAflat
SMA6F6.0A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | SMA6F |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6V |
| Voltage - Breakdown (Min) | 6.7V |
| Voltage - Clamping (Max) @ Ipp | 10.3V |
| Current - Peak Pulse (10/1000µs) | 61A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat |
| Base Product Number | SMA6F6.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

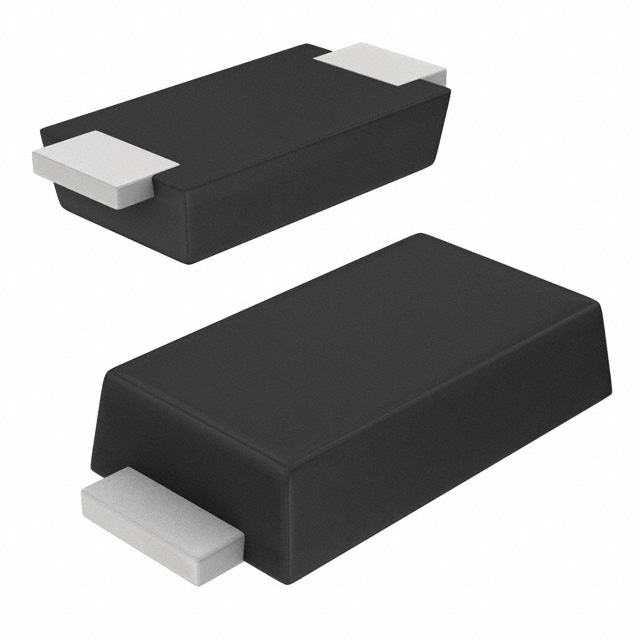

| Part Number | SMA6F6.0A-M3/6A | SMA6F6.0A-M3/6B | SMA6F6.0AY | SMA6F6.5A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 6VWM 13.7VC DO221AC | TVS DIODE 6VWM 13.7VC DO221AC | TVS DIODE 6VWM 10.3VC SMAFLAT | TVS DIODE 6.5VWM 11.2VC SMAFLAT |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
