SMAJ130AH

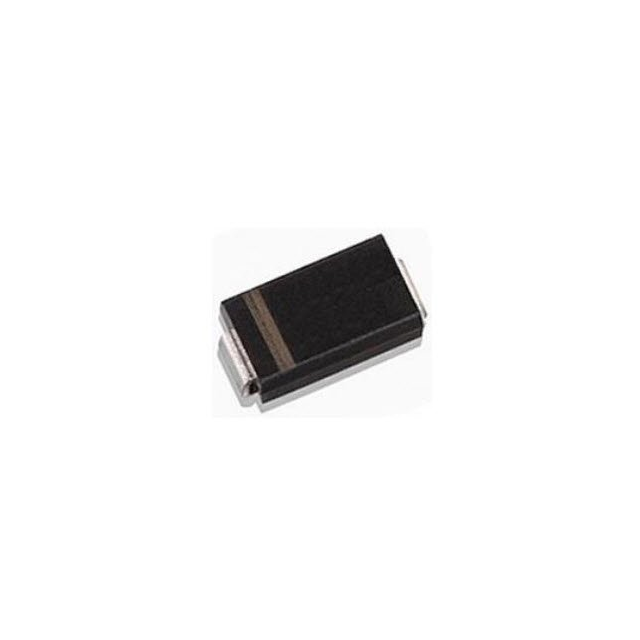

lmages are for reference only.SMAJ130AH
TVS DIODE 130VWM 209VC DO214AC
DatasheetDO-214AC, SMA
34,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
209V Clamp 1.5A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
SMAJ130AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMAJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 130V |
| Voltage - Breakdown (Min) | 144V |
| Voltage - Clamping (Max) @ Ipp | 209V |
| Current - Peak Pulse (10/1000µs) | 1.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | SMAJ13 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
|
| Part Number | SMAJ130A | SMAJ130A | SMAJ130A | SMAJ130A |
| Manufacturer | Bourns Inc. | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 130VWM 209VC SMA | TVS DIODE 130VWM 209VC DO214AC | TVS DIODE 130VWM 209VC | TVS DIODE 130VWM 209VC DO214AC |
| Series | Bourns Inc. | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
