Product CatalogPart Number
SMAJ26AJ
Manufacturer
WeEn SemiconductorsDescription
SMAJ26A/SMA/REEL 13" Q1/T1 *STA
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
25,375 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMAJ26AJ
SMAJ26AJ

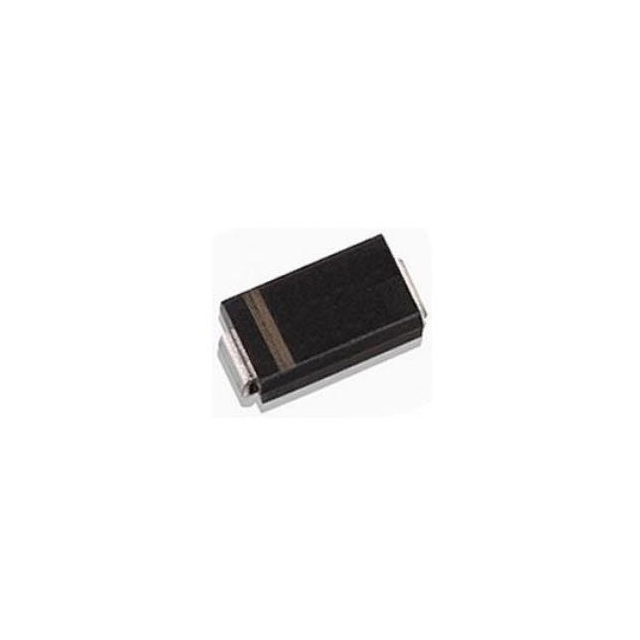

lmages are for reference only.Payment Methods
Delivery Services
42.1V Clamp 9.5A Ipp Tvs Diode Surface Mount SMA
Quick Inquiry
SMAJ26AJ
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | SMAJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 29.12V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 9.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | SMAJ26 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | SMAJ26A | SMAJ26A | SMAJ26A | SMAJ26A |
| Manufacturer | Littelfuse Inc. | SMC Diode Solutions | Meritek | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 26VWM 42.1VC DO214AC | TVS DIODE 26VWM 42.1VC SMA | TVS DIODE 26VWM 42.1VC | TVS DIODE 26VWM 42.1VC SMA |
| Series | Littelfuse Inc. | SMC Diode Solutions | Meritek | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
