SMAJ54AQ-13-F

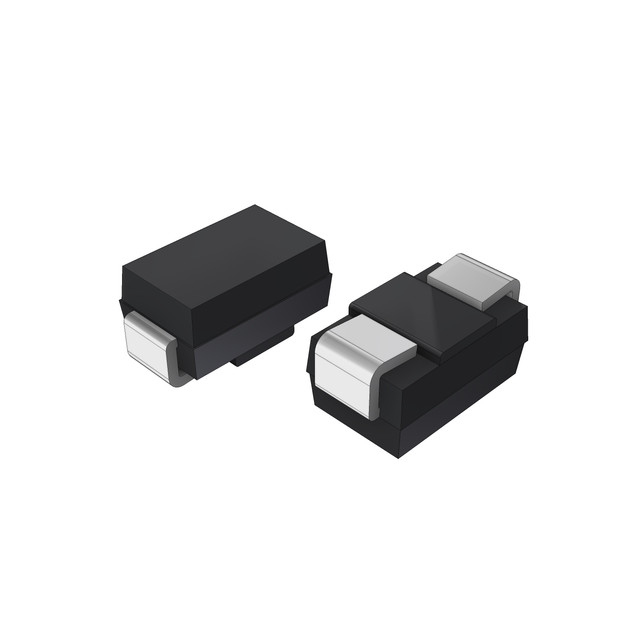

lmages are for reference only.SMAJ54AQ-13-F
TRANSIENT VOLTAGE SUPPRESSOR PP
DatasheetDO-214AC, SMA
69,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
87.1V Clamp 4.6A Ipp Tvs Diode Surface Mount SMA
SMAJ54AQ-13-F
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 54V |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 87.1V |
| Current - Peak Pulse (10/1000µs) | 4.6A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
|

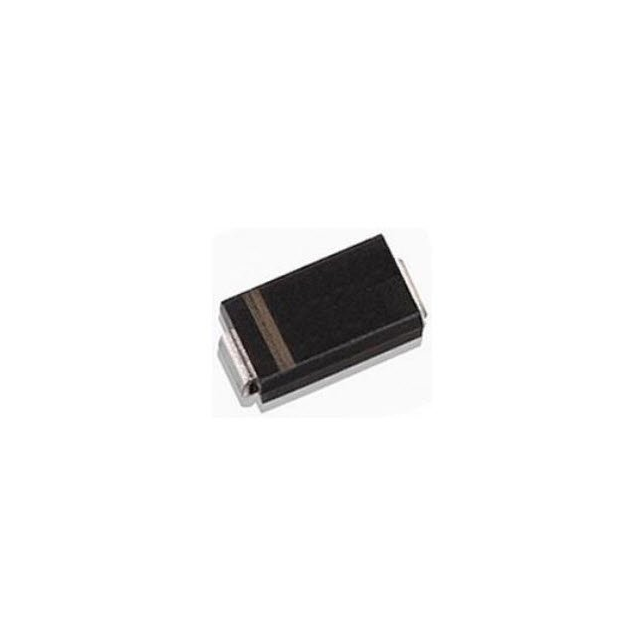

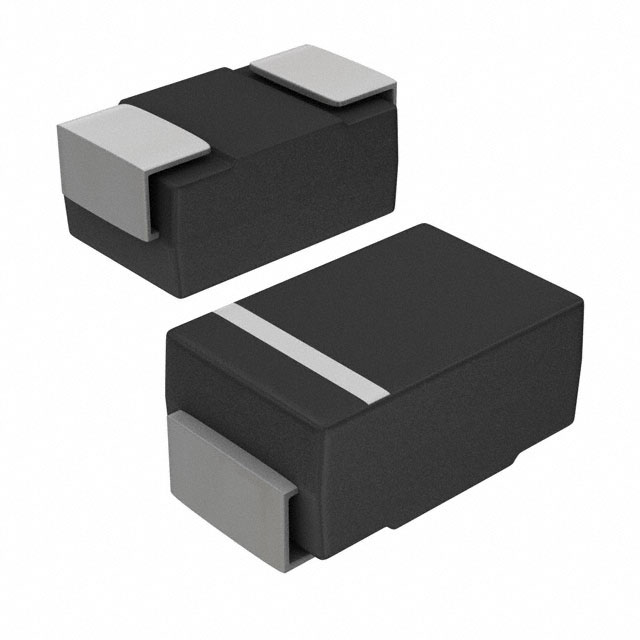

| Part Number | SMAJ54A | SMAJ54A | SMAJ54A | SMAJ54A |
| Manufacturer | SMC Diode Solutions | Taiwan Semiconductor Corporation | MDD | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 54VWM 87.1VC SMA | TVS DIODE 54VWM 87.1VC DO214AC | TVS DIODE 54VWM 87.1VC SMA | TVS DIODE 54VWM 87.1VC |
| Series | SMC Diode Solutions | Taiwan Semiconductor Corporation | MDD | Meritek |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Strip |
