SMBG36AHE3/52

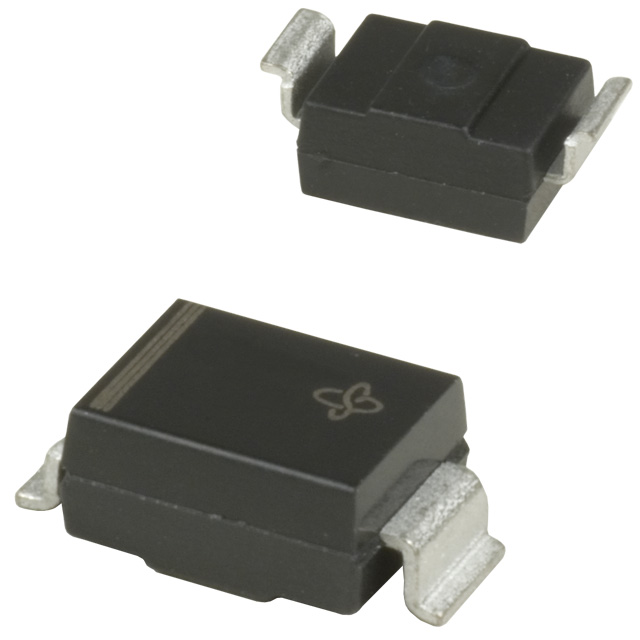

lmages are for reference only.SMBG36AHE3/52
TVS DIODE 36VWM 58.1VC DO215AA
DatasheetDO-215AA, SMB Gull Wing
96,789 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
58.1V Clamp 10.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
SMBG36AHE3/52
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Current - Peak Pulse (10/1000µs) | 10.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | SMBG36 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
 |
 |
| Part Number | SMBG36AHE3/5B | SMBG36A-E3/52 | SMBG36A-E3/5B | SMBG36A-M3/52 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 36VWM 58.1VC DO215AA | TVS DIODE 36VWM 58.1VC DO215AA | TVS DIODE 36VWM 58.1VC DO215AA | TVS DIODE 36VWM 58.1VC DO215AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
