SMBG7.5A-M3/52

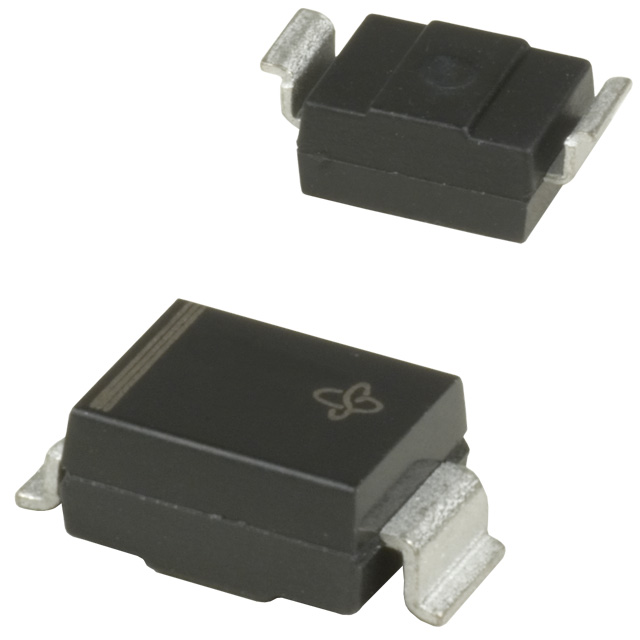

lmages are for reference only.SMBG7.5A-M3/52
TVS DIODE 7.5VWM 12.9VC DO215AA
DatasheetDO-215AA, SMB Gull Wing
59,873 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.9V Clamp 46.5A Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
SMBG7.5A-M3/52
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 7.5V |
| Voltage - Breakdown (Min) | 8.33V |
| Voltage - Clamping (Max) @ Ipp | 12.9V |
| Current - Peak Pulse (10/1000µs) | 46.5A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | SMBG7.5 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMBG7.5A-M3/5B | SMBG7.5A-E3/52 | SMBG7.5A-E3/5B | SMBG7.5A/54 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TVS DIODE 7.5VWM 12.9VC DO215AA | TVS DIODE 7.5VWM 12.9VC DO215AA | TVS DIODE 7.5VWM 12.9VC DO215AA | TVS DIODE 7.5VWM 12.9VC DO215AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
