SMBG9.0A-M3/5B

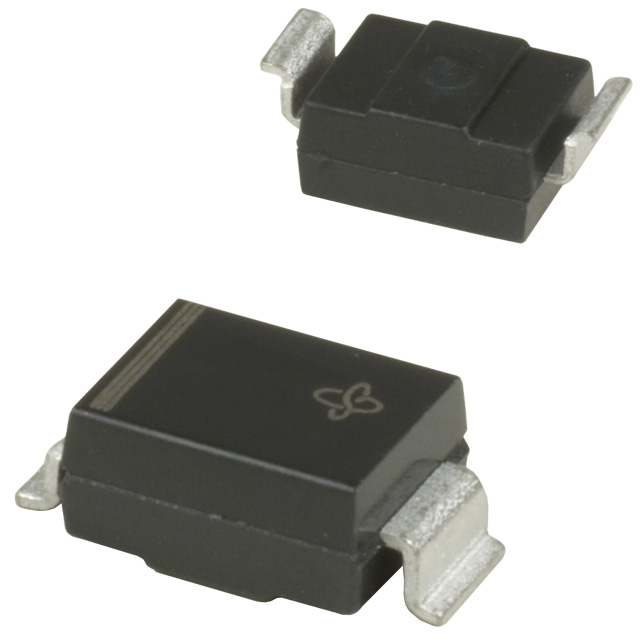

lmages are for reference only.SMBG9.0A-M3/5B
TVS DIODE 9VWM 15.4VC DO215AA
DatasheetDO-215AA, SMB Gull Wing
20,407 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15.4V Clamp 39A Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
SMBG9.0A-M3/5B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 9V |
| Voltage - Breakdown (Min) | 10V |
| Voltage - Clamping (Max) @ Ipp | 15.4V |
| Current - Peak Pulse (10/1000µs) | 39A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | SMBG9.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | SMBG9.0A-M3/52 | SMBG9.0A-E3/52 | SMBG9.0A-E3/5B | SMBG9.0AHE3/52 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 9VWM 15.4VC DO215AA | TVS DIODE 9VWM 15.4VC DO215AA | TVS DIODE 9VWM 15.4VC DO215AA | TVS DIODE 9VWM 15.4VC DO215AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
