SMBJ33CAH

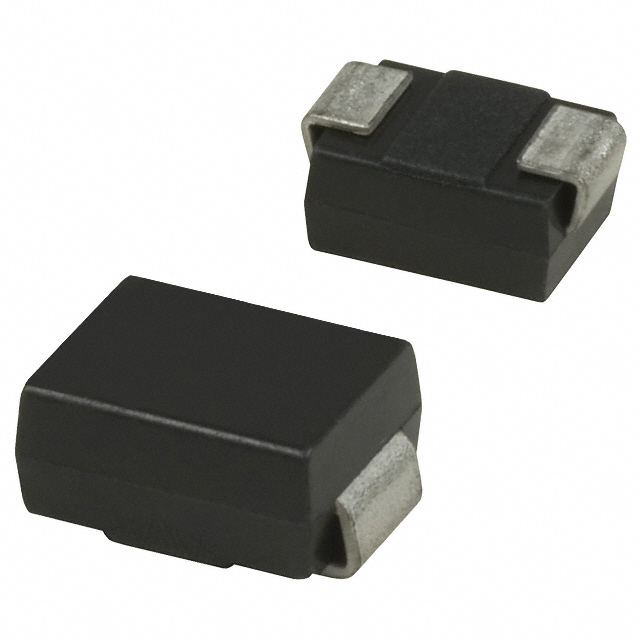

lmages are for reference only.SMBJ33CAH
TVS DIODE 33VWM 53.3VC DO214AA
DatasheetDO-214AA, SMB
71,251 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
53.3V Clamp 11.8A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
SMBJ33CAH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMBJH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse (10/1000µs) | 11.8A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | SMBJ33 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
|
| Part Number | SMBJ33CA | SMBJ33CA | SMBJ33CA | SMBJ33CA |
| Manufacturer | MDD | Meritek | Semtech Corporation | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 33VWM 53.3VC SMB | TVS DIODE 33VWM 53.3VC | TVS DIODE 33VWM 53.3VC SMB | TVS DIODE 33VWM 53.3VC DO214AA |
| Series | MDD | Meritek | Semtech Corporation | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Strip | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
