SMBJ45CA-E3/5B

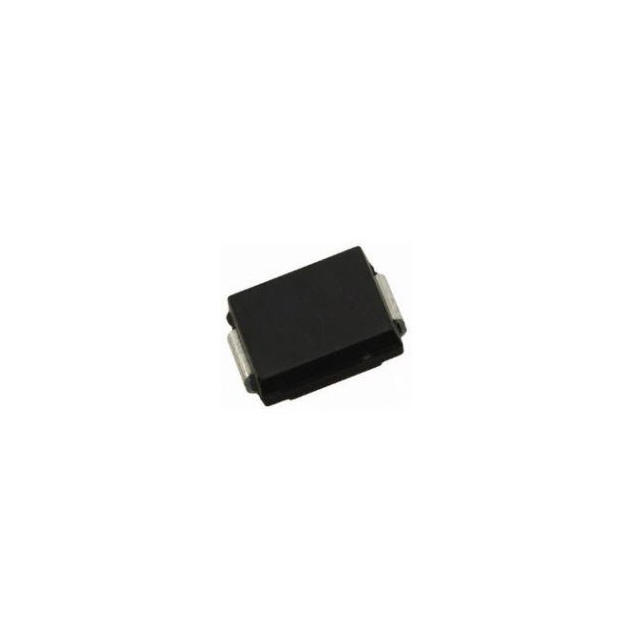

lmages are for reference only.SMBJ45CA-E3/5B
TVS DIODE 45VWM 72.7VC DO214AA
DatasheetDO-214AA, SMB
26,425 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
72.7V Clamp 8.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
SMBJ45CA-E3/5B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 45V |
| Voltage - Breakdown (Min) | 50V |
| Voltage - Clamping (Max) @ Ipp | 72.7V |
| Current - Peak Pulse (10/1000µs) | 8.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | SMBJ45 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | SMBJ45CA-E3/1 | SMBJ45CA-E3/52 | SMBJ45CA | SMBJ45CA |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Bourns Inc. | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 45VWM 72.7VC DO214AA | TVS DIODE 45VWM 72.7VC DO214AA | TVS DIODE 45VWM 72.7VC SMB | TVS DIODE 45VWM 72.7VC SMB |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Bourns Inc. | SMC Diode Solutions |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
