SMBJE130CA

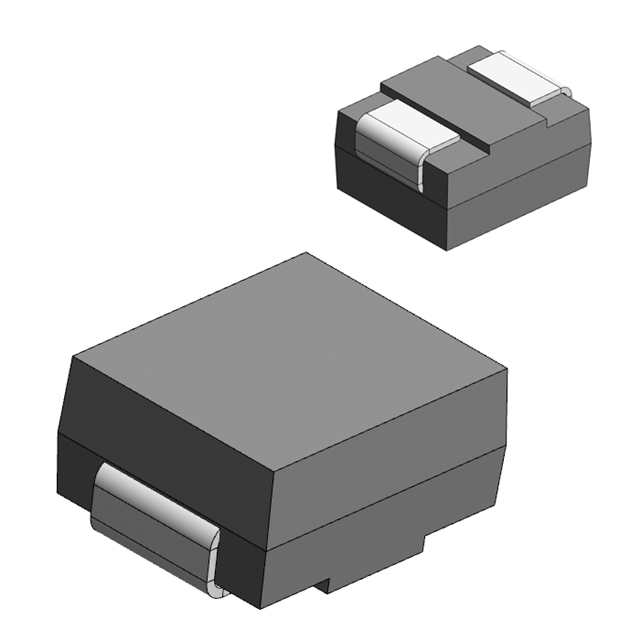

lmages are for reference only.SMBJE130CA
TVS DIODE 130VWM 209VC SMB
DatasheetDO-214AA, SMB
78,829 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
209V Clamp 2.9A Ipp Tvs Diode Surface Mount SMB
SMBJE130CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMBJE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 130V |
| Voltage - Breakdown (Min) | 144V |
| Voltage - Clamping (Max) @ Ipp | 209V |
| Current - Peak Pulse (10/1000µs) | 2.9A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | SMBJE130CAH | SMBJE130A | SMBJE130AH | SMBJE13A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TVS DIODE 130VWM 209VC BI | TVS DIODE 130VWM 209VC SMB | TVS DIODE 130VWM 209VC UNI | TVS DIODE 13VWM 21.5VC SMB |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
