Product CatalogPart Number
SMCJ75CAJ
Manufacturer
WeEn SemiconductorsDescription
SMCJ75CA/SMC/REEL 13" Q1/T1 *ST
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
73,981 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMCJ75CAJ
SMCJ75CAJ

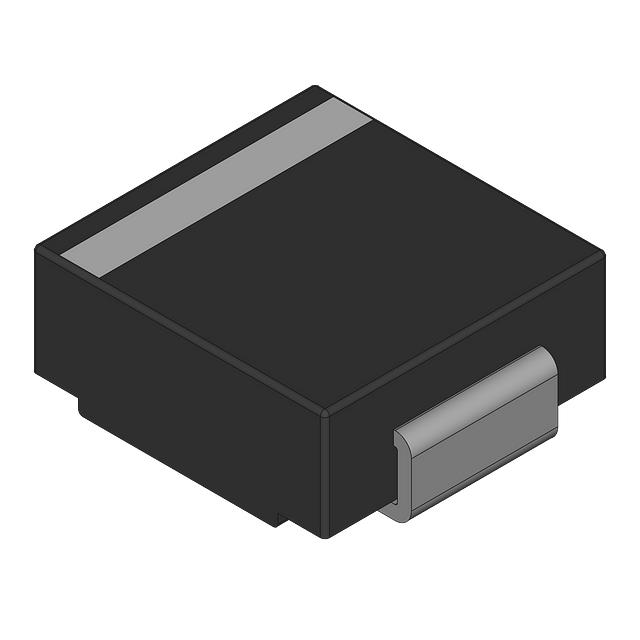

lmages are for reference only.Payment Methods
Delivery Services
121V Clamp 12.4A Ipp Tvs Diode Surface Mount SMC
Quick Inquiry
SMCJ75CAJ
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 75V |
| Voltage - Breakdown (Min) | 83.9V |
| Voltage - Clamping (Max) @ Ipp | 121V |
| Current - Peak Pulse (10/1000µs) | 12.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | SMCJ75 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | SMCJ75CA | SMCJ75CA | SMCJ75CA | SMCJ75CA |
| Manufacturer | Taiwan Semiconductor Corporation | SMC Diode Solutions | Fairchild Semiconductor | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 75VWM 121VC SMC | TVS DIODE 75VWM 121VC SMC | TRANS VOLTAGE SUPPRESSOR DIODE, | TVS DIODE 75VWM 121VC DO214AB |
| Series | Taiwan Semiconductor Corporation | SMC Diode Solutions | Fairchild Semiconductor | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
