SMD1812P020TFA

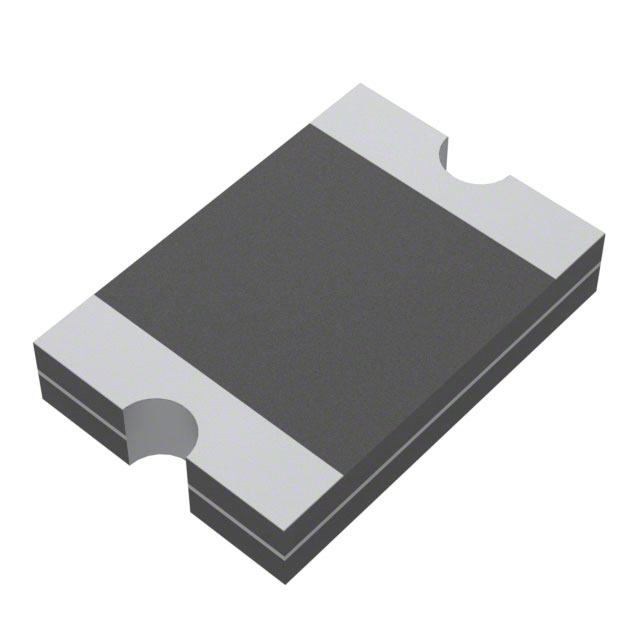

lmages are for reference only.SMD1812P020TFA
PTC RESET FUSE 30V 200MA 1812
Datasheet1812 (4532 Metric), Concave
70,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1812 (4532 Metric), Concave
SMD1812P020TFA
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, SMD1812 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 400 mA |
| Current - Max | 10 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.031" (0.78mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 20 ms |
| Resistance - Initial (Ri) (Min) | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 5 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | SMD1812P020TSA | SMD1812P010TFA | SMD1812P010TSA | SMD1812P014TFA |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 30V 200MA 1812 | PTC RESET FUSE 30V 100MA 1812 | PTC RESET FUSE 30V 100MA 1812 | PTC RESET FUSE 60V 140MA 1812 |
| Series | POLY-FUSE®, SMD1812 | POLY-FUSE®, SMD1812 | POLY-FUSE®, SMD1812 | POLY-FUSE®, SMD1812 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
