Product CatalogPart Number
SMDTF02680QA00MP00
Manufacturer
WIMADescription
CAP FILM 0.068UF 20% 160VAC 2220
Datasheet
DatasheetPackage
2220 (5750 Metric)
In Stock
90,015 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMDTF02680QA00MP00
SMDTF02680QA00MP00

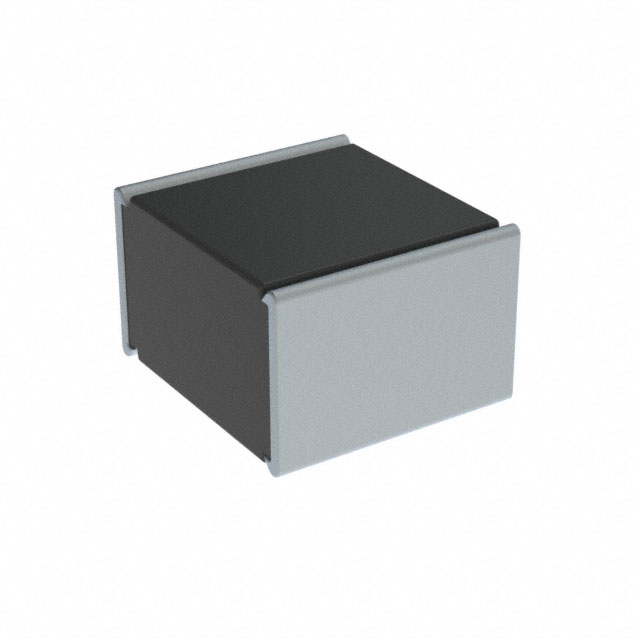

lmages are for reference only.Payment Methods
Delivery Services
0.068 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized 2220 (5750 Metric)
Quick Inquiry
SMDTF02680QA00MP00
Specifications
| Category | Capacitors - Film Capacitors - |
| Manufacturer | WIMA |
| Series | SMD-PET |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.068 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.224" L x 0.201" W (5.70mm x 5.10mm) |
| Height - Seated (Max) | 0.150" (3.80mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | SMDTF0 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | SMDTF02680QA00MQ00 | SMDTF02680QA00MS00 | SMDTF02680QA00KP00 | SMDTF02680QA00KQ00 |
| Manufacturer | WIMA | WIMA | WIMA | WIMA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.068UF 20% 160VAC 2220 | CAP FILM 0.068UF 20% 160VAC 2220 | CAP FILM 0.068UF 10% 160VAC 2220 | CAP FILM 0.068UF 10% 160VAC 2220 |
| Series | WIMA | WIMA | WIMA | WIMA |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
