Product CatalogPart Number
SMF12CAQ-TP
Manufacturer
Micro Commercial CoDescription
TVS,SOD-123FL
Datasheet
DatasheetPackage
SOD-123F
In Stock
32,897 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMF12CAQ-TP
SMF12CAQ-TP

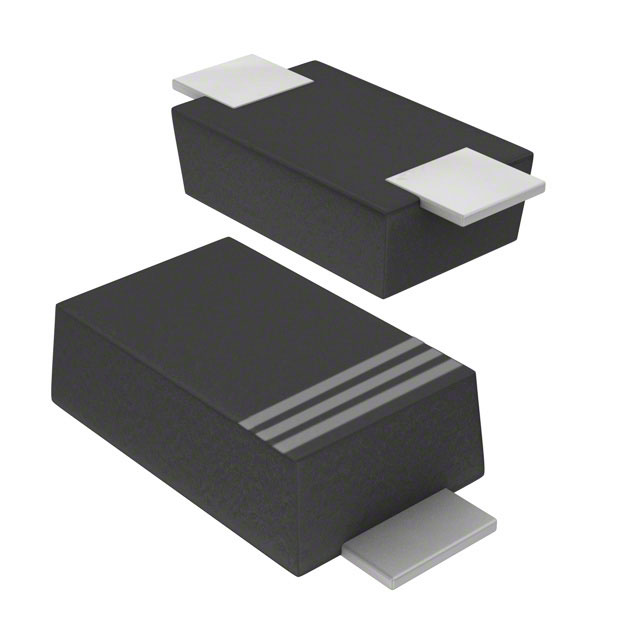

lmages are for reference only.Payment Methods
Delivery Services
19.9V Clamp 10.05A Ipp Tvs Diode Surface Mount SOD-123FL
Quick Inquiry
SMF12CAQ-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Current - Peak Pulse (10/1000µs) | 10.05A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123FL |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | SMF12.TCT | SMF120A | SMF120A | SMF120A |
| Manufacturer | Semtech Corporation | Meritek | Diotec Semiconductor | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 12VWM 25VC SC70-5 | TVS DIODE 120VWM 193VC | TVS DIODE 120VWM 193VC SOD-123FL | TVS SOD123FL 120V 200W UNIDIR |
| Series | Semtech Corporation | Meritek | Diotec Semiconductor | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Bulk | Tape & Reel (TR) |
