SMF13A
lmages are for reference only.SMF13A
TVS DIODE 200W 14.4V-15.9V SOD-
DatasheetSOD-123F
52,258 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.5V Clamp 9.3A Ipp Tvs Diode Surface Mount SOD-123
SMF13A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | SMF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 13V |
| Voltage - Breakdown (Min) | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 21.5V |
| Current - Peak Pulse (10/1000µs) | 9.3A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

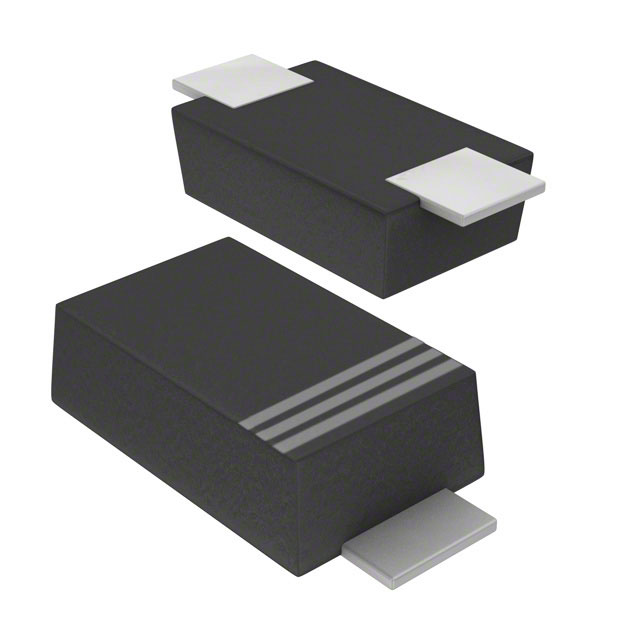

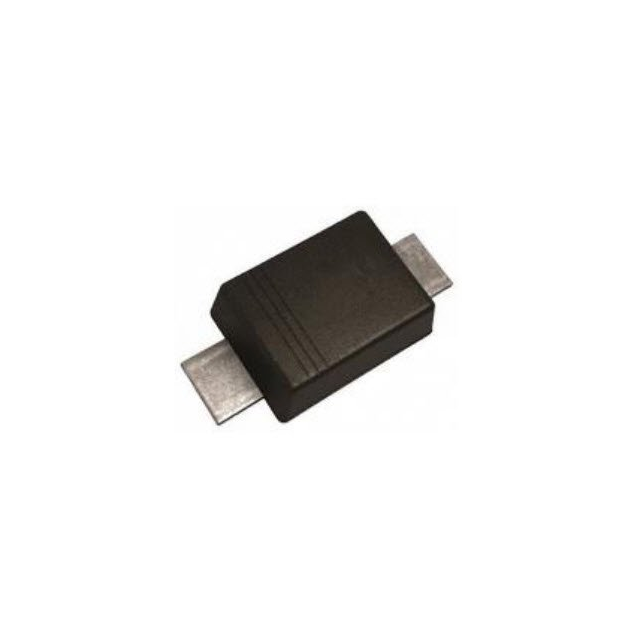

| Part Number | SMF130A | SMF130A | SMF130A-HF | SMF130A-TP |
| Manufacturer | Diotec Semiconductor | Littelfuse Inc. | Comchip Technology | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | TVS DIODE 130VWM 209VC SOD-123FL | TVS SOD123FL 130V 200W UNIDIR | DIODE TVS 200W 130V UNI-DIRECTIO | Interface |
| Series | Diotec Semiconductor | Littelfuse Inc. | Comchip Technology | Micro Commercial Co |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
