Product CatalogPart Number
SMF16CA
Manufacturer
MDDDescription
TVS DIODE 16VWM 26VC SMF
Datasheet
DatasheetPackage
SOD-123F, SMF
In Stock
87,878 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMF16CA
SMF16CA

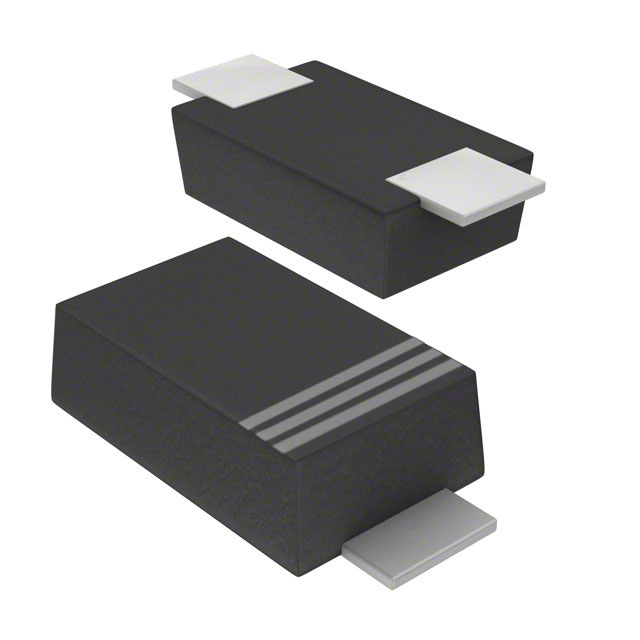

lmages are for reference only.Payment Methods
Delivery Services
26V Clamp 7.7A Ipp Tvs Diode Surface Mount SMF/SOD-123FL
Quick Inquiry
SMF16CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDD |
| Series | SMF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 16V |
| Voltage - Breakdown (Min) | 17.8V |
| Voltage - Clamping (Max) @ Ipp | 26V |
| Current - Peak Pulse (10/1000µs) | 7.7A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F, SMF |
| Supplier Device Package | SMF/SOD-123FL |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
 |
| Part Number | SMF16CA | SMF16CA | SMF16CA | SMF16CA-HF |
| Manufacturer | Littelfuse Inc. | Meritek | Diotec Semiconductor | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TVS SOD123FL 16V 200W BIDIR | TVS DIODE 16VWM 26VC | TVS DIODE 16VWM 26VC SOD-123FL | DIODE TVS 200W 16V BI-DIRECTIONA |
| Series | Littelfuse Inc. | Meritek | Diotec Semiconductor | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

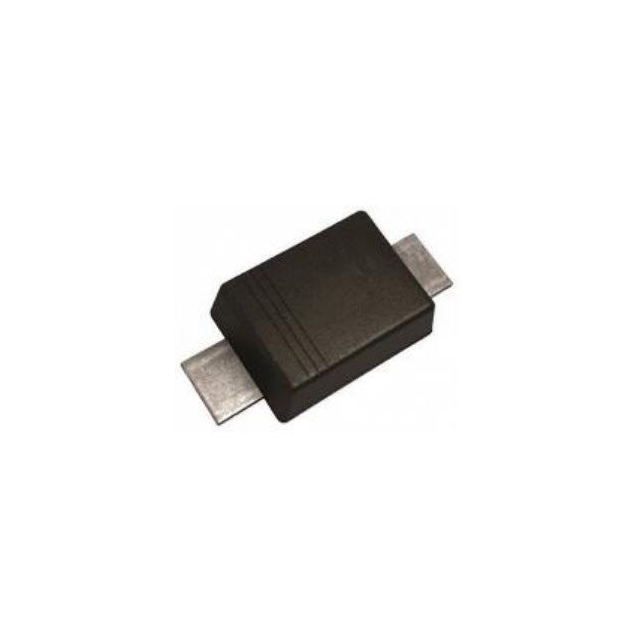

SMF160A
