SMF4L40A

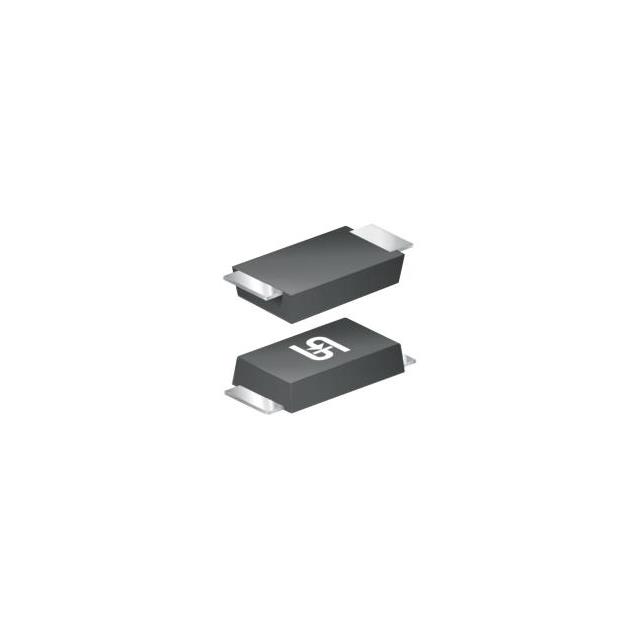

lmages are for reference only.SMF4L40A
400W, 46.75V, UNIDIRECTIONAL, TV
DatasheetSOD-123W
98,934 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
64.5V Clamp 6.2A Ipp Tvs Diode Surface Mount SOD-123W
SMF4L40A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 40V |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Current - Peak Pulse (10/1000µs) | 6.2A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123W |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | SMF4L40A | SMF4L40A | SMF4L40A-7 | SMF4L40AH |
| Manufacturer | Bourns Inc. | Littelfuse Inc. | Diodes Incorporated | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE TVS 400W 40V UNI SMF | TVS DIODE 40VWM 64.5VC SOD123FL | TRANSIENT VOLTAGE SUPPRESSOR PP | 400W, 46.75V, UNIDIRECTIONAL, TV |
| Series | Bourns Inc. | Littelfuse Inc. | Diodes Incorporated | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
