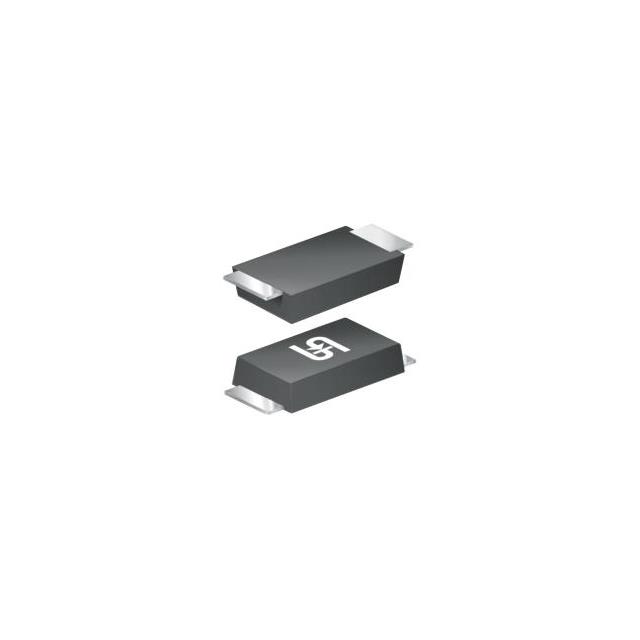

SMF8.0A
lmages are for reference only.SMF8.0A
TVS DIODE 8VWM 13.6VC SOD123W
DatasheetSOD-123W
14,884 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13.6V Clamp 14.7A Ipp Tvs Diode Surface Mount SOD-123W
SMF8.0A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8V |
| Voltage - Breakdown (Min) | 8.89V |
| Voltage - Clamping (Max) @ Ipp | 13.6V |
| Current - Peak Pulse (10/1000µs) | 14.7A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123W |
| Base Product Number | SMF8.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | SMF8.0A | SMF8.0A | SMF8.0A-HF | SMF8.0A-T13 |
| Manufacturer | Littelfuse Inc. | Diotec Semiconductor | Comchip Technology | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | TVS SOD123FL 80V 200W UNIDIR | TVS DIODE 8VWM 13.6VC SOD-123FL | DIODE TVS 200W 8V UNI-DIRECTIONA | TVS DIODE 8VWM 13.6VC SOD123FL |
| Series | Littelfuse Inc. | Diotec Semiconductor | Comchip Technology | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
