SML-LX1210IGC-TR/R

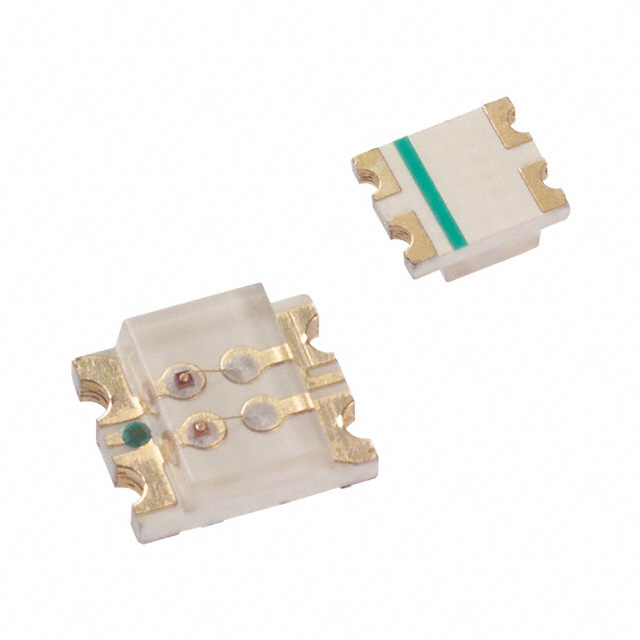

lmages are for reference only.SML-LX1210IGC-TR/R
LED GREEN/RED CLEAR SMD
Datasheet4-SMD, No Lead
25,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, No Lead
SML-LX1210IGC-TR/R
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 10mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | - |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.35mm |
| Base Product Number | SML-LX1210 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | SML-LX1210IGC-TR | SML-LX1206AW-TR | SML-LX1206GC-TR | SML-LX1206GC-TR1 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 1210 SMD | LED 605NM AMB WHT DIFF 1206 T/R | LED GREEN CLEAR 1206 SMD | LED 565NM GREEN CLR 1206 T/R |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
