SML-LXFM0603SUGCTR

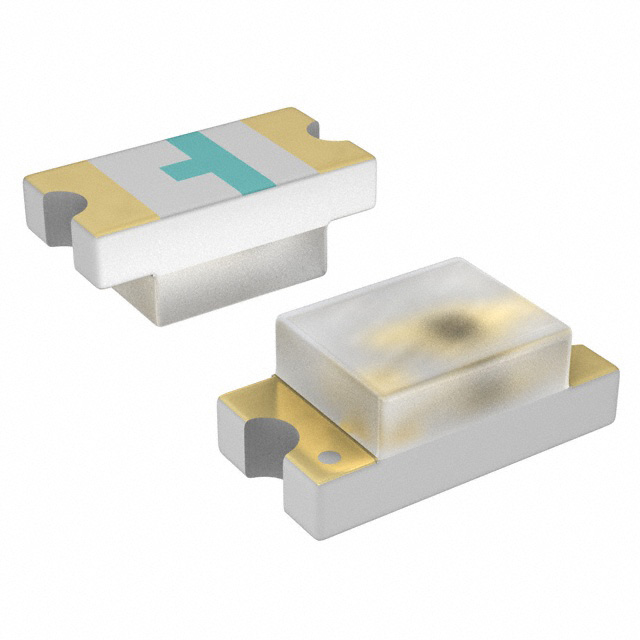

lmages are for reference only.SML-LXFM0603SUGCTR
LED GREEN CLEAR SMD
Datasheet0603 (1608 Metric)
44,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green LED Indication - Discrete 2.2V 0603 (1608 Metric)
SML-LXFM0603SUGCTR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Independent |
| Lens Color | Green |
| Lens Transparency | Clear |
| Millicandela Rating | 50mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 574nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 1.10mm |
| Base Product Number | SML-LXFM0603 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | SML-LXFM0603SIC-TR | SML-LXFM0603SOC-TR | SML-LXFM0603SRC-TR | SML-LXFM0603SYC-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR 0603 SMD | LED ORANGE CLEAR SMD | LED RED CLEAR SMD | LED YELLOW CLEAR SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
