SML-LXIL1618SIC-TR
lmages are for reference only.SML-LXIL1618SIC-TR
LED 625NM RED WTR CLR 4MM SQ SMD
Datasheet1816 (4540 Metric)
49,605 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 625nm LED Indication - Discrete 2.2V 1816 (4540 Metric)
SML-LXIL1618SIC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 15000mcd |
| Lens Style | Square |
| Lens Size | 4.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 30mA |
| Viewing Angle | 16° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm |
| Wavelength - Peak | 625nm |
| Features | - |
| Package / Case | 1816 (4540 Metric) |
| Supplier Device Package | 1618 |
| Size / Dimension | 4.50mm L x 4.00mm W |
| Height (Max) | 2.90mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

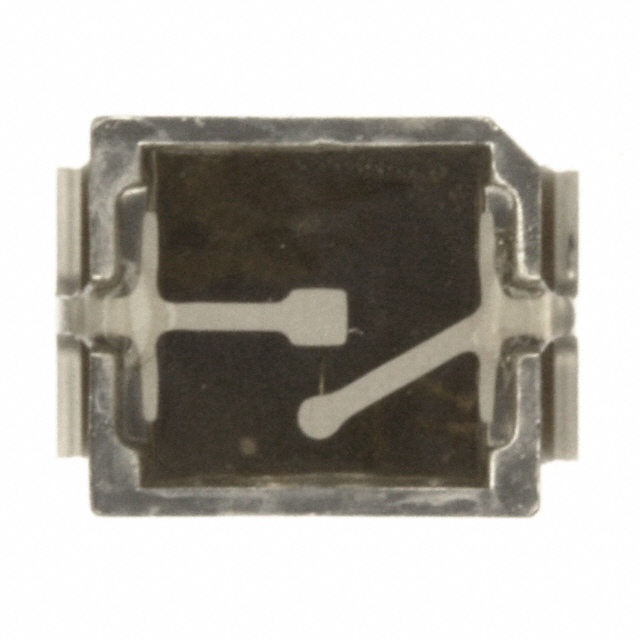

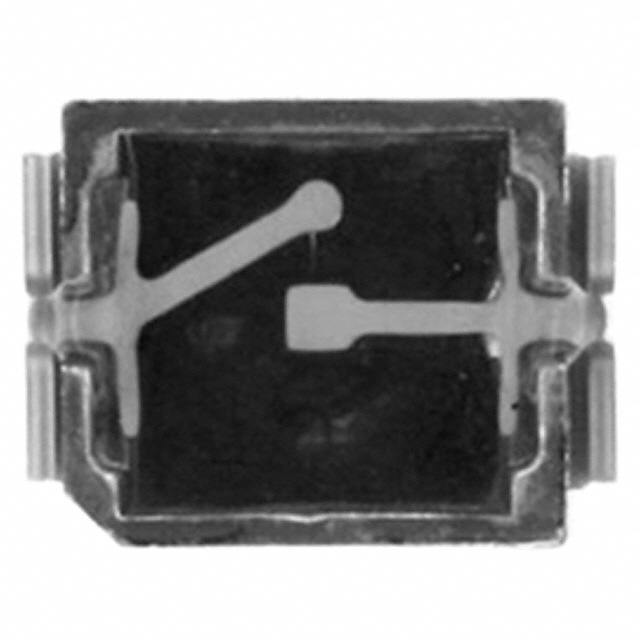

| Part Number | SML-LXIL1618UPGC-TR | SML-LXIL1618USBC-TR | SML-LXIL0603SIC-TR | SML-LXIL0603SYC-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED 528NM GRN WTR CLR 4MM SQ SMD | LED 470NM BLUE WTR CLR 4MM SQ SM | LED RED CLEAR TOP VIEW SMD | LED YELLOW CLEAR SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
