SML-LXR1206YD-TR
lmages are for reference only.SML-LXR1206YD-TR
LED YELLOW DIFFUSED 1206 SMD
Datasheet1206 (3216 Metric)
73,794 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow LED Indication - Discrete 2.1V 1206 (3216 Metric)
SML-LXR1206YD-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 8mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 585nm |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.05mm |
| Base Product Number | SML-LXR1206 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |

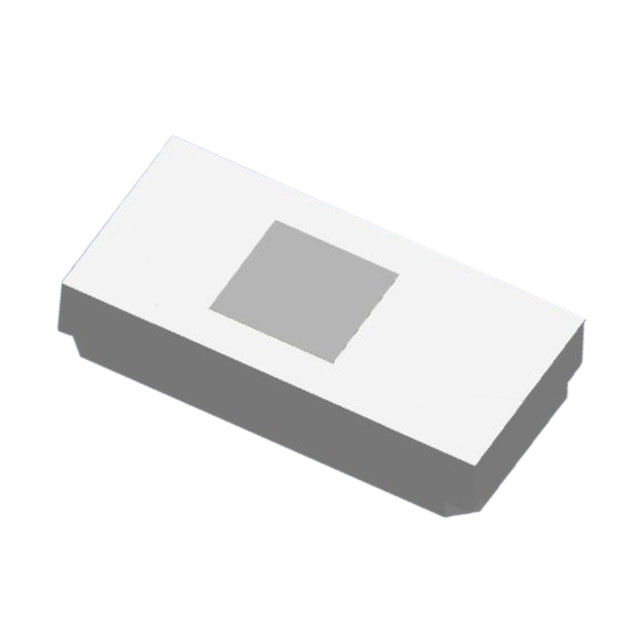

| Part Number | SML-LXR1201RGBC-TR | SML-LXR1206GD-TR | SML-LXR1206ID-TR | SML-LX0201NWD-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR SMD R/A | LED GREEN DIFFUSED 1206 SMD | LED RED DIFFUSED 1206 SMD | LED WHITE NEUTRAL INGAN 2SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
