SMLJ85CAE3/TR13

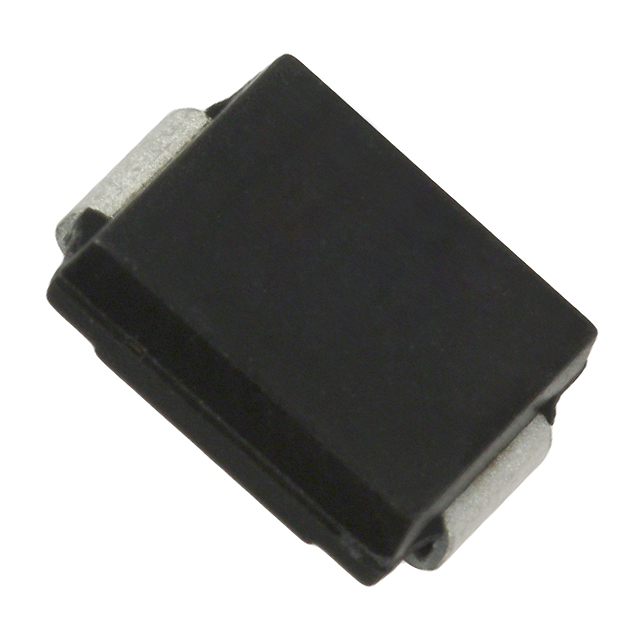

lmages are for reference only.SMLJ85CAE3/TR13
TVS DIODE 85VWM 137VC DO214AB
DatasheetDO-214AB, SMC
67,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
137V Clamp 20.8A Ipp Tvs Diode Surface Mount DO-214AB
SMLJ85CAE3/TR13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 85V |
| Voltage - Breakdown (Min) | 94.4V |
| Voltage - Clamping (Max) @ Ipp | 137V |
| Current - Peak Pulse (10/1000µs) | 20.8A |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB |
| Base Product Number | SMLJ85 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMLJ8.0A | SMLJ8.0A-TP | SMLJ8.0AE3/TR13 | SMLJ8.0AQ-TP |
| Manufacturer | Bourns Inc. | Micro Commercial Co | Microchip Technology | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 8VWM 13.6VC SMC | Interface | TVS DIODE 8VWM 13.6VC DO214AB | TVS DIODES |
| Series | Bourns Inc. | Micro Commercial Co | Microchip Technology | Micro Commercial Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
