SMM02040C7150FB000
lmages are for reference only.SMM02040C7150FB000
RES 715 OHM 1% 1/4W MELF 0204
DatasheetMELF, 0204
69,347 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
715 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
SMM02040C7150FB000
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | SMM0204 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 715 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | Mini MELF |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.142" L (1.40mm x 3.60mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

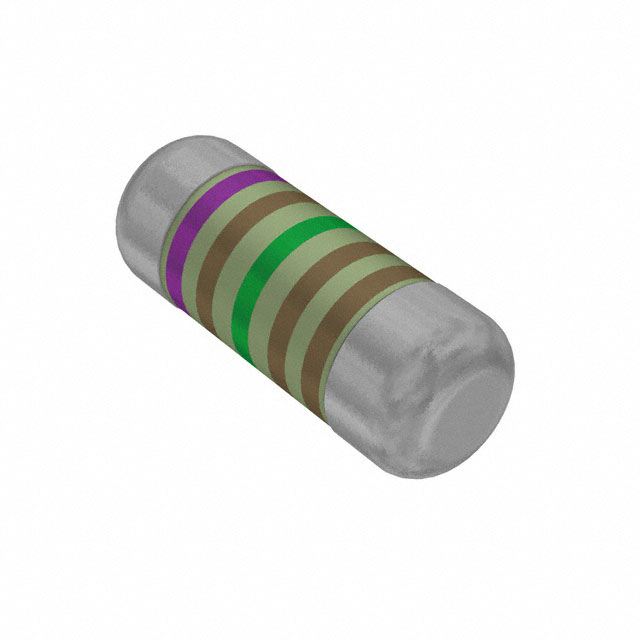

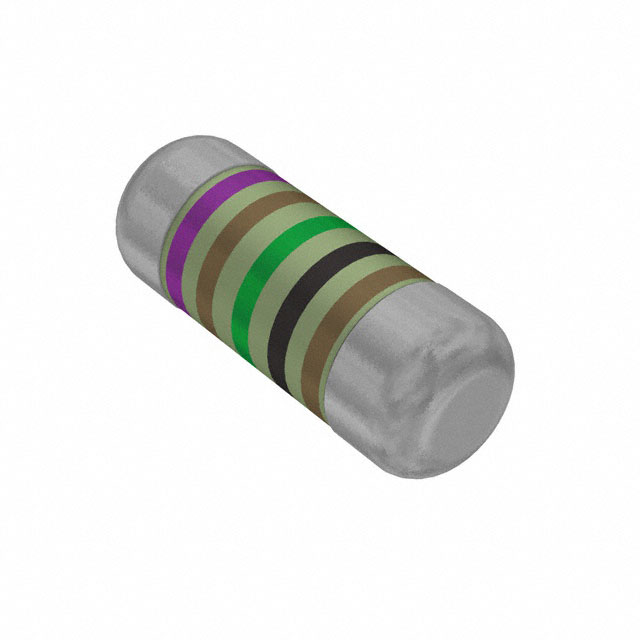

| Part Number | SMM02040C7150FB300 | SMM02040C7151DB300 | SMM02040C7151FB000 | SMM02040C7151FB300 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 715 OHM 1% 1/4W MELF 0204 | SMM0204 50 7K15 0,5% B3 | SMM0204 50 7K15 1% B0 | RES 7.15K OHM 1% 1/4W MELF 0204 |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
