SMM02040D1003CB100
lmages are for reference only.SMM02040D1003CB100
SMM0204 25 100K 0,25% B1
DatasheetMELF, 0204
94,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 kOhms ±0.25% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
SMM02040D1003CB100
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | SMM0204 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 100 kOhms |
| Tolerance | ±0.25% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | 0204 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.142" L (1.40mm x 3.60mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

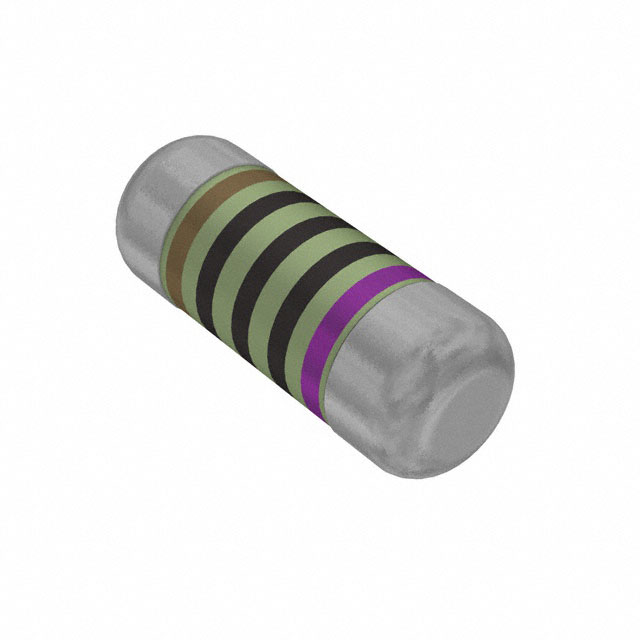

| Part Number | SMM02040D1003CB000 | SMM02040D1000BB000 | SMM02040D1000BB100 | SMM02040D1000BB300 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SMM0204 25 100K 0,25% B0 | RES 100 OHM 0.1% 1/4W MELF 0204 | RES 100 OHM 0.1% 1/4W MELF 0204 | RES 100 OHM 0.1% 1/4W MELF 0204 |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
