SMP1340-004LF
lmages are for reference only.SMP1340-004LF
COMMON CATHODE PAIR (TWIN CHIP)
DatasheetTO-236-3, SC-59, SOT-23-3
23,078 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode PIN - 1 Pair Common Cathode 50V 400 mW SOT-23-3
SMP1340-004LF
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | Skyworks Solutions Inc. |
| Series | SMP1340 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Base Product Number | - |
| Diode Type | PIN - 1 Pair Common Cathode |
| Voltage - Peak Reverse (Max) | 50V |
| Current - Max | - |
| Capacitance @ Vr, F | 0.3pF @ 5V, 1MHz |
| Resistance @ If, F | 1.2Ohm @ 10mA, 100MHz |
| Power Dissipation (Max) | 400 mW |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | SMP1340-003LF | SMP1340-007LF | SMP1340-040LF | SMP1340-074LF |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

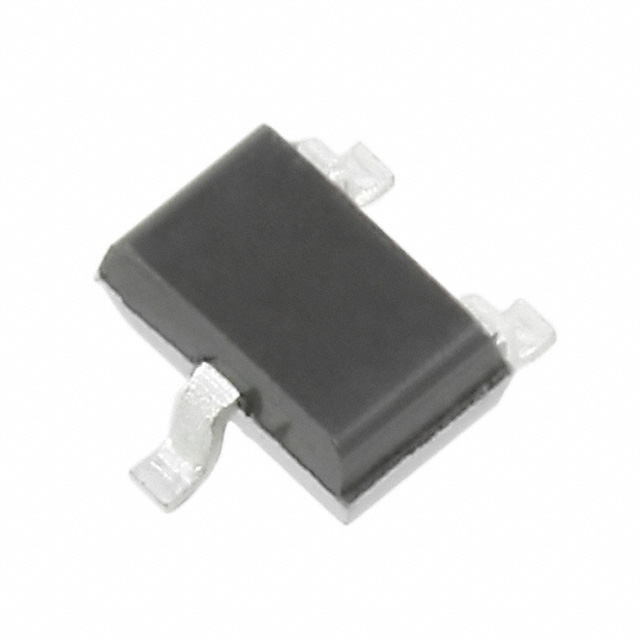

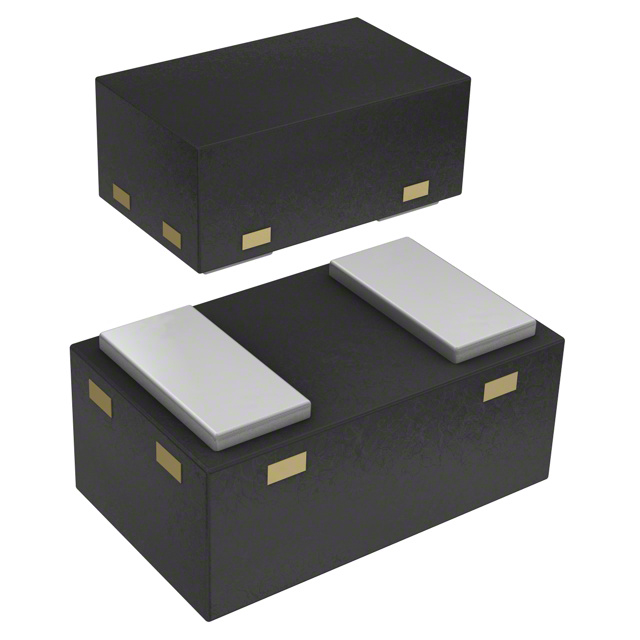

| Description | SOT 23 COMMON ANODE (TWO CHIPS) | RF DIODE PIN 50V 250MW SOT23-3 | RF DIODE PIN 50V 750MW 0402 | RF DIODE PIN 50V 250MW SC70-3 |
| Series | SMP1340 | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
