SMQW1R15JT

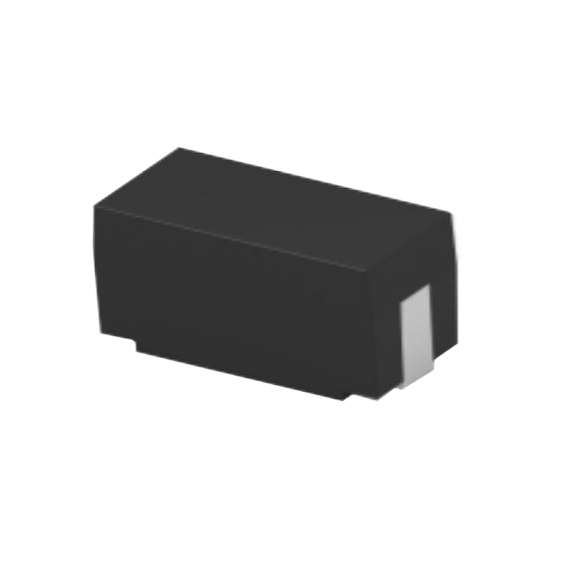

lmages are for reference only.SMQW1R15JT
SMQW1W R15 5%
Datasheet2616 (6740 Metric), J-Lead
85,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 mOhms ±5% 1W Chip Resistor 2616 (6740 Metric), J-Lead Automotive AEC-Q200, Flame Retardant Coating, Safety Wirewound
SMQW1R15JT
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SMQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 150 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Wirewound |
| Features | Automotive AEC-Q200, Flame Retardant Coating, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 2616 (6740 Metric), J-Lead |
| Supplier Device Package | - |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.264" L x 0.157" W (6.70mm x 4.00mm) |
| Height - Seated (Max) | 0.152" (3.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMQW1R10JT | SMQW1R11JT | SMQW1R12JT | SMQW1R13JT |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SMQW1W R10 5% | SMQW1W R11 5% | SMQW1W R12 5% | SMQW1W R13 5% |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
