SNLU322522QV-4R7J
lmages are for reference only.SNLU322522QV-4R7J
FIXED IND 4.7UH 220MA 1.5OHM SMD
Datasheet1210 (3225 Metric)
35,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Unshielded Wirewound Inductor 220 mA 1.5Ohm Max 1210 (3225 Metric)
SNLU322522QV-4R7J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | SNLU322522QV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SNLU322522QV-47NJ | SNLU322522QV-100J | SNLU322522QV-101J | SNLU322522QV-10NJ |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

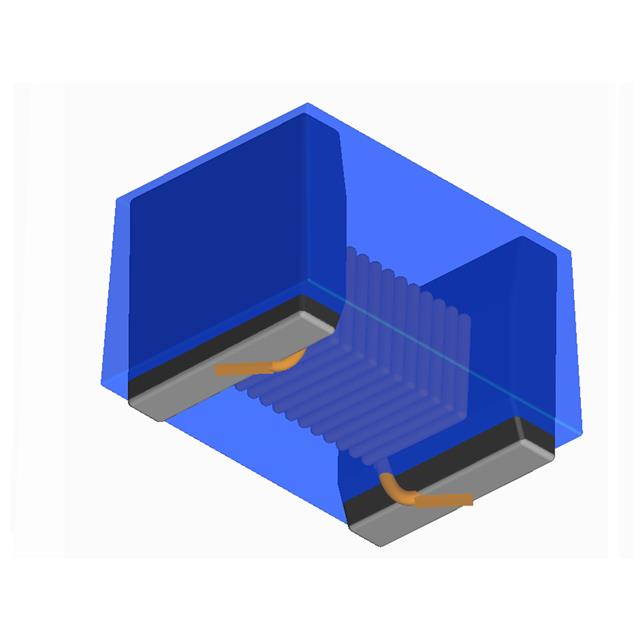

| Description | FIXED IND 47NH 450MA 300MOHM SMD | FIXED IND 10UH 150MA 2.1OHM SMD | FIXED IND 100UH 40MA 10.0OHM SMD | FIXED IND 10NH 450MA 130MOHM SMD |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
