SP1-12-3

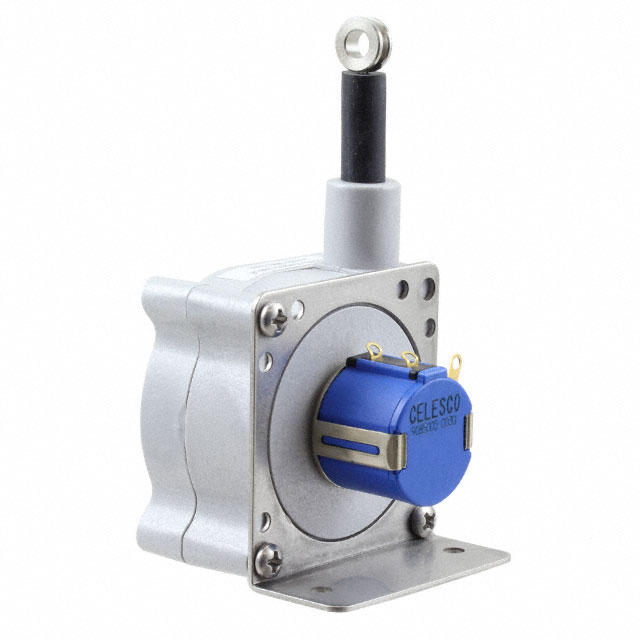

lmages are for reference only.SP1-12-3
STRING POT 12.5 INCH RANGE W/CON
DatasheetBox with Connector
83,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Linear Position String Potentiometer Connector
SP1-12-3
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 1270.00mm (0 ~ 50.00") |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | 30V |
| Mounting Type | Panel Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 70°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | SP1 |
| Product Attribute |  |
 |
|
 |
| Part Number | SP1-12 | SP-L-0150-103-3%-RLU | SP-L-0012-103-1%-RH | SPS-A100D-HAWS |
| Manufacturer | TE Connectivity Measurement Specialties | Spectra Symbol | Spectra Symbol | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR LINEAR 317MM SOLDER LUG | SENSOR LINEAR 150MM CONNECTOR | SENSOR LINEAR 12.5MM CONNECTOR | SENSOR ANGLE 100DEG WIRE LEADS |
| Series | SP1 | SoftPot | SoftPot | SPS |
| Packaging | Box | Bag | Bulk | Bulk |
