SPC5746CSK1AMKU6
lmages are for reference only.SPC5746CSK1AMKU6
MPC5746C - 32 BIT,DUAL CORE,3M F
Datasheet176-LQFP Exposed Pad
18,366 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
e200z2, e200z4 MPC57xx Microcontroller IC 32-Bit Dual-Core 80MHz, 160MHz 3MB (3M x 8) FLASH 176-LQFP (24x24)
SPC5746CSK1AMKU6
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | NXP Semiconductors |
| Series | MPC57xx |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Core Processor | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core |
| Speed | 80MHz, 160MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SAI, SPI |
| Peripherals | DMA, I2S, LVD/HVD, POR, WDT |
| Number of I/O | 129 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Data Converters | A/D 68x10b, 31x12b SAR |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP Exposed Pad |
| Base Product Number | SPC5746 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

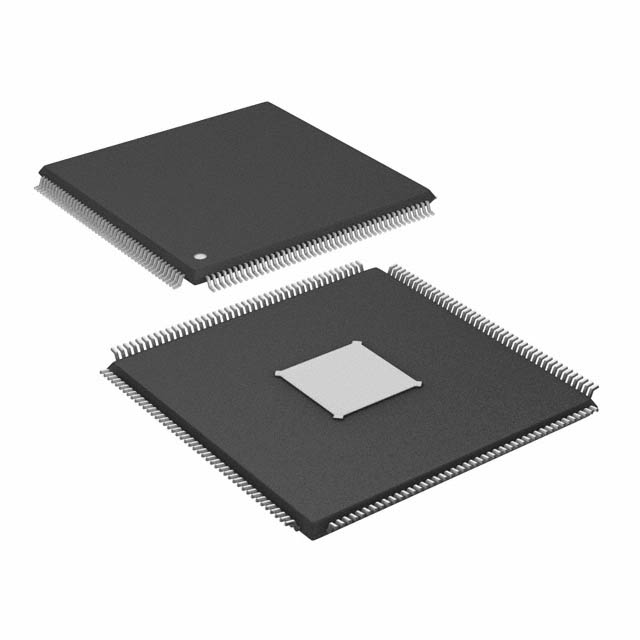

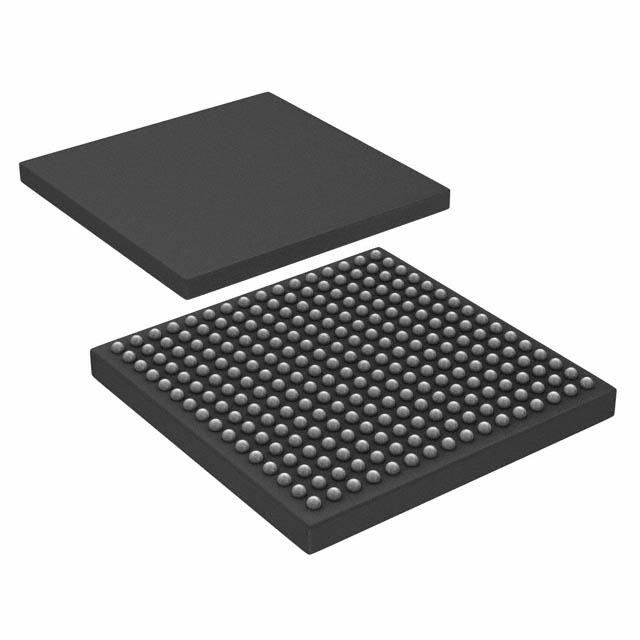

| Part Number | SPC5746CSK1AMKU6 | SPC5746CSK1AMMH6 | SPC5746CSK1AMMJ6 | SPC5746CSK1AVKU6 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 3MB FLASH 176LQFP | IC MCU 32BIT 3MB FLASH 100MAPBGA | IC MCU 32BIT 3MB FLSH 256MAPPBGA | IC MCU 32BIT 3MB FLASH 176LQFP |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tray | Tray | Tray | Tray |
