SPC5748GBK0ACKU6
lmages are for reference only.SPC5748GBK0ACKU6
TRIPLE CORE, 6M FLASH, 768K RAM
Datasheet176-LQFP Exposed Pad
48,716 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
e200z2, e200z4 MPC57xx Microcontroller IC 32-Bit Tri-Core 80MHz, 160MHz 6MB (6M x 8) FLASH 176-LQFP (24x24)
SPC5748GBK0ACKU6
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Series | MPC57xx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | e200z2, e200z4 |
| Core Size | 32-Bit Tri-Core |
| Speed | 80MHz, 160MHz |
| Connectivity | CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, LVD, I2S, POR, WDT |
| Number of I/O | 129 |
| Program Memory Size | 6MB (6M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 768K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 3.6V, 4.5V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP Exposed Pad |
| Base Product Number | SPC5748 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
|
 |
 |

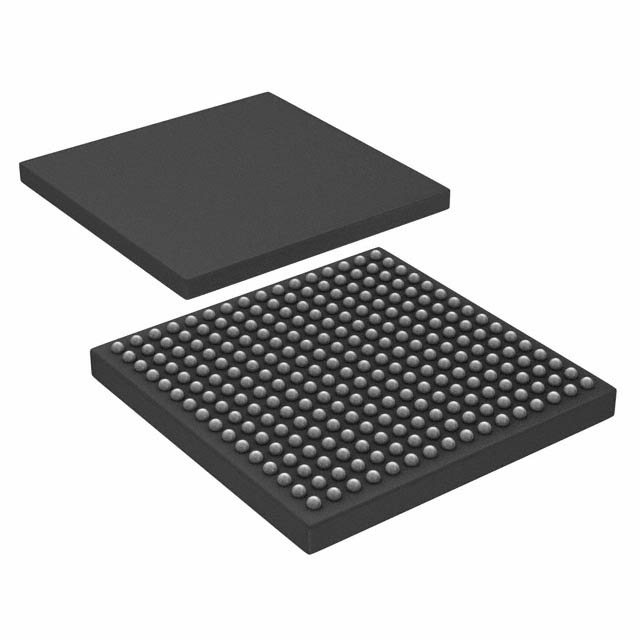

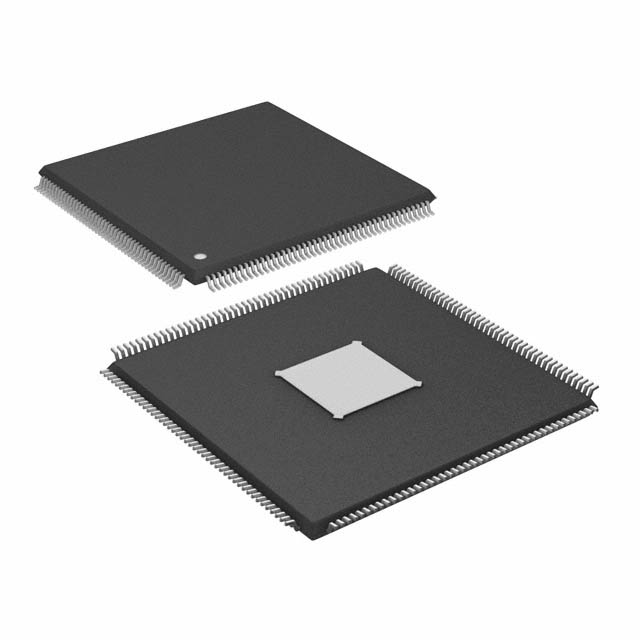

| Part Number | SPC5748GBK0AMMJ6 | SPC5748GBK0AMMN6 | SPC5748GBK0AVKU6 | SPC5748GBK0AVMJ6 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 6MB FLSH 256MAPPBGA | IC MCU 32BIT 6MB FLASH 324MAPBGA | IC MCU 32BIT 6MB FLASH 176LQFP | IC MCU 32BIT 6MB FLSH 256MAPPBGA |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tray | Tray | Tray | Tray |
