SPDL151306-1200-2P-T

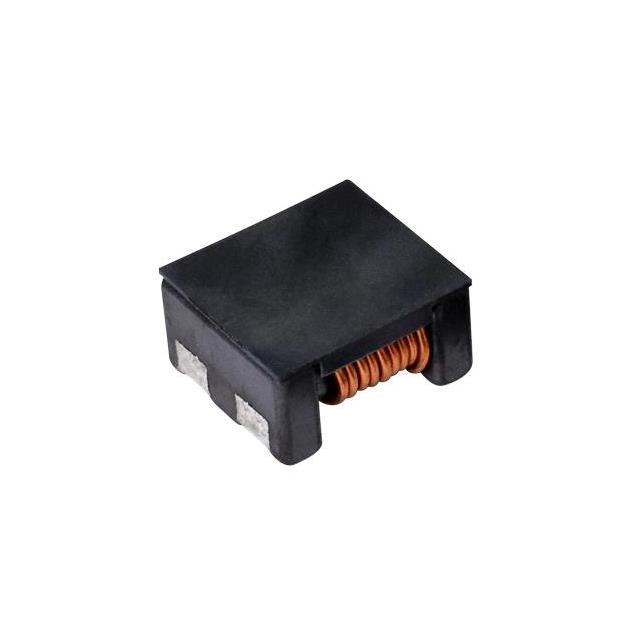

lmages are for reference only.SPDL151306-1200-2P-T
CMC 5MA 2LN 1.2K OHM SMD
DatasheetHorizontal, 4 PC Pad
15,476 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 1.2 kOhms @ 100 MHz 5mA DCR 23Ohm
SPDL151306-1200-2P-T
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Signal Transformer |
| Series | SPDL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 5mA |
| DC Resistance (DCR) (Max) | 23Ohm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.614" L x 0.512" W (15.60mm x 13.00mm) |
| Height (Max) | 0.260" (6.60mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 1.2 kOhms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SPDL151306-225-2P-T | SPDL151306-400-2P-T | SPDL151306-500-2P-T | SPDL151306-800-2P-T |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CMC 13MA 2LN 225 OHM SMD | 2 LINE SMD COMMON MODE CHOKE 400 | CMC 10MA 2LN 500 OHM SMD | CMC 9MA 2LN 800 OHM SMD |
| Series | SPDL | SPDL | SPDL | SPDL |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
