SPDL485025-350-2P-T
lmages are for reference only.SPDL485025-350-2P-T
CMC 4A 2LN 350 OHM SMD
DatasheetHorizontal, 4 PC Pad
87,915 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 350 Ohms @ 100 MHz 4A DCR 28mOhm (Typ)
SPDL485025-350-2P-T
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Signal Transformer |
| Series | SPDL485025 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 28mOhm (Typ) |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 350 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

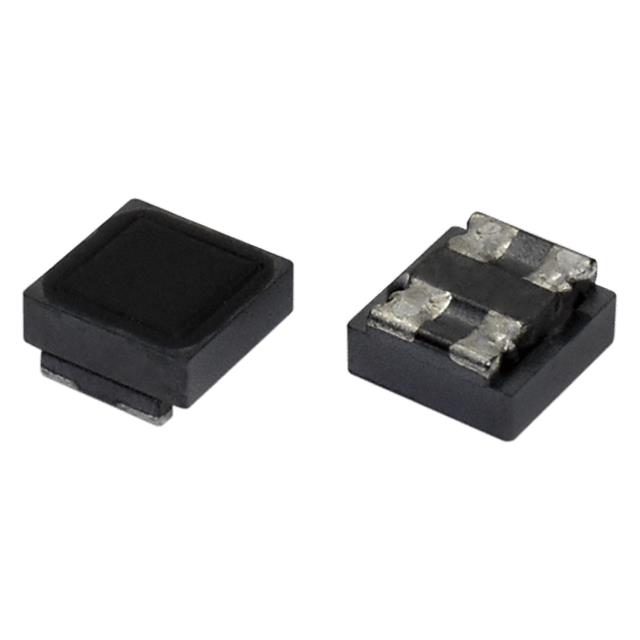

| Part Number | SPDL485025-100-2P-T | SPDL485025-1000-2P-T | SPDL485025-1400-2P-T | SPDL485025-250-2P-T |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 6.5A 2LN 100 OHM SMD | CMC 2A 2LN 1K OHM SMD | CMC 1.5A 2LN 1.4K OHM SMD | CMC 5A 2LN 250 OHM SMD |
| Series | SPDL485025 | SPDL485025 | SPDL485025 | SPDL485025 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
