Product CatalogPart Number
SQ4120-R72MHF
Manufacturer
ITG Electronics, Inc.Description
0.72UH, 0.95MOHM, 19A MAX. FLAT
Datasheet
DatasheetPackage
3-SMD
In Stock
63,020 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SQ4120-R72MHF
SQ4120-R72MHF
lmages are for reference only.Payment Methods
Delivery Services
720 nH Drum Core, Wirewound Inductor 23 A 0.95mOhm 3-SMD
Quick Inquiry
SQ4120-R72MHF
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SQ4120 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 720 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 23 A |
| Current - Saturation (Isat) | 19A |
| Shielding | - |
| DC Resistance (DCR) | 0.95mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 0.406" L x 0.319" W (10.30mm x 8.10mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SQ4120-1R0MHF | SQ4120-1R2MHF | SQ4120-1R5MHF | SQ4120-R62MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1.0UH, 0.95MOHM, 12.5A MAX. FLAT | 1.2UH, 0.95MOHM, 10A MAX. FLAT W | 1.5UH, 0.95MOHM, 8.0A MAX. FLAT | 0.62UH, 0.95MOHM, 23A MAX. FLAT |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
SQ4120-1R0MHF
ITG Electronics, Inc.
SQ4120-1R2MHF
ITG Electronics, Inc.

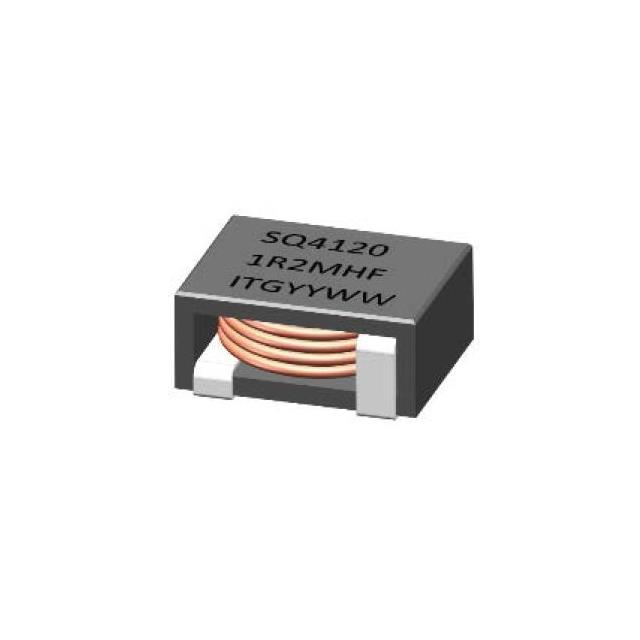

SQ4120-1R5MHF
ITG Electronics, Inc.
SQ4120-R62MHF
ITG Electronics, Inc.
SQ4120-R82MHF
ITG Electronics, Inc.
SQ4120-R90MHF
ITG Electronics, Inc.
SQ4126-1R0MHF-CT
ITG Electronics, Inc.

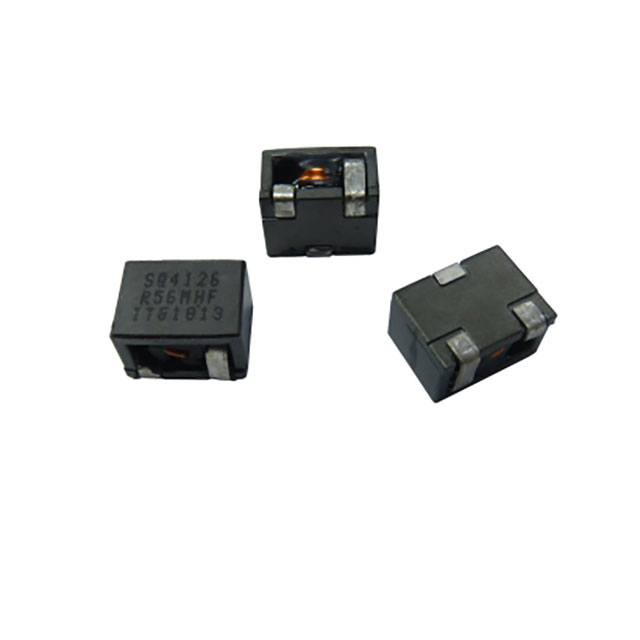

SQ4126-2R2MHF
ITG Electronics, Inc.
SQ4126-2R2MHF-CT
ITG Electronics, Inc.
SQ4126-3R3MHF
ITG Electronics, Inc.
SQ4126-R42MHF
ITG Electronics, Inc.

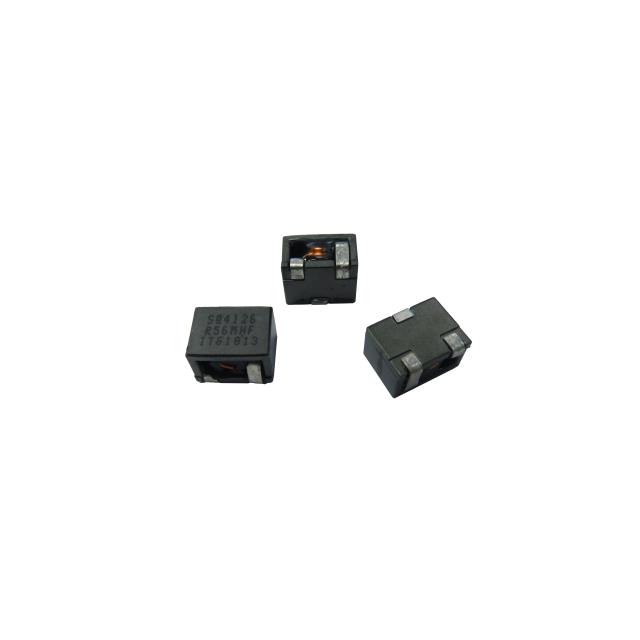

SQ4126-R68MHF-CT
