SQA403EJ-T1_GE3
lmages are for reference only.SQA403EJ-T1_GE3
MOSFET P-CH 30V 10A PPAK SC70-6
DatasheetPowerPAK® SC-70-6
58,143 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 10A (Tc) 13.6W (Tc) Surface Mount PowerPAK® SC-70-6
SQA403EJ-T1_GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1880 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 13.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 |
| Package / Case | PowerPAK® SC-70-6 |
| Base Product Number | SQA403 |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

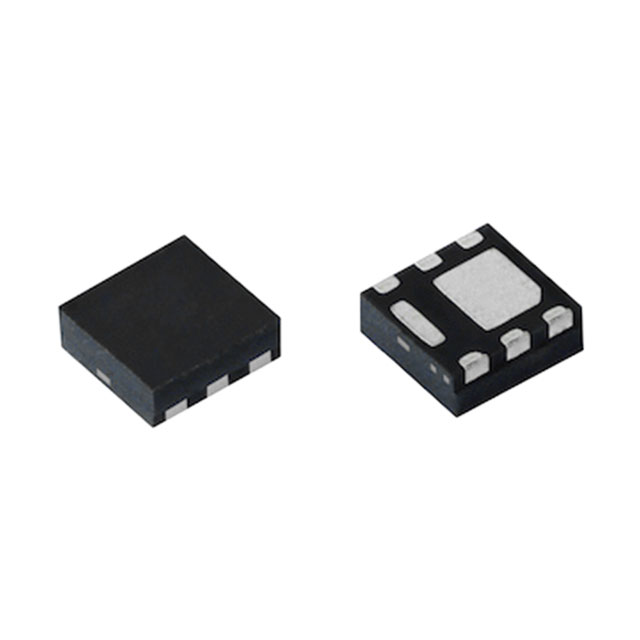

| Part Number | SQA401CEJW-T1_GE3 | SQA401EEJ-T1_GE3 | SQA401EJ-T1_GE3 | SQA405CEJW-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AUTOMOTIVE P-CHANNEL 20 V (D-S) | MOSFET P-CH 20V 2.68A PPAK SC70 | MOSFET P-CH 20V 3.75A PPAK SC70 | AUTOMOTIVE P-CHANNEL 40 V (D-S) |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
