SQJ154EP-T1_GE3

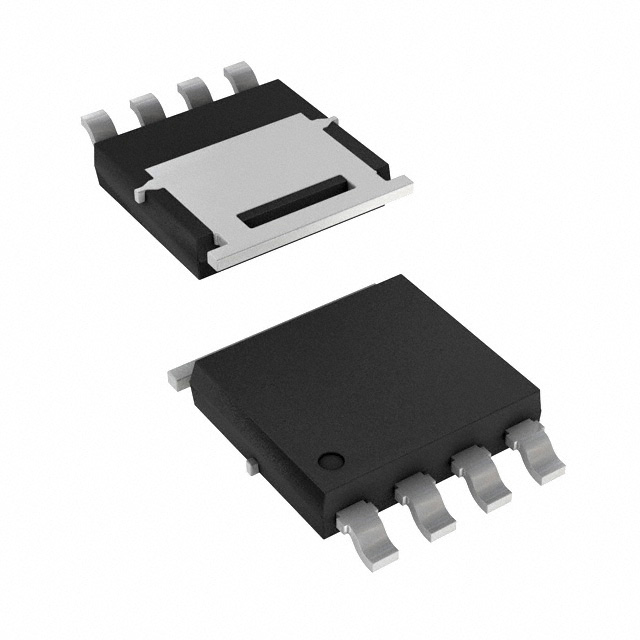

lmages are for reference only.SQJ154EP-T1_GE3
AUTOMOTIVE N-CHANNEL 40 V (D-S)
DatasheetPowerPAK® SO-8
40,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 243A (Tc) 214W (Tc) Surface Mount PowerPAK® SO-8
SQJ154EP-T1_GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® Gen IV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 243A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3620 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 214W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SQJ154 |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SQJ150EP-T1_GE3 | SQJ152ELP-T1_GE3 | SQJ152EP-T1_GE3 | SQJ158EP-T1_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 40V 66A PPAK SO-8 | MOSFET N-CH 40V 123A PPAK SO-8 | AUTOMOTIVE N-CHANNEL 40 V (D-S) | MOSFET N-CH 60V 23A PPAK SO-8 |
| Series | TrenchFET® Gen IV | TrenchFET® | TrenchFET® Gen IV | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
