SQP120N06-06_GE3
Manufacturer
Vishay SiliconixDescription
MOSFET N-CH 60V 119A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
32,596 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SQP120N06-06_GE3
SQP120N06-06_GE3
lmages are for reference only.Payment Methods
Delivery Services

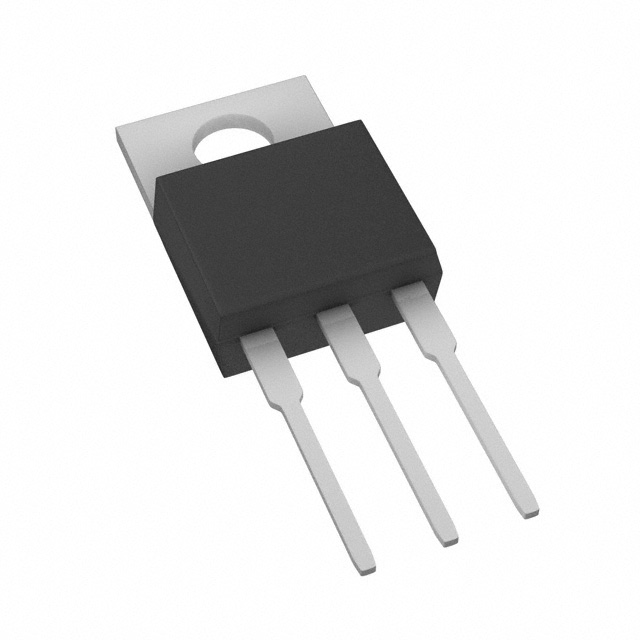

N-Channel 60 V 119A (Tc) 175W (Tc) Through Hole TO-220AB
Quick Inquiry
SQP120N06-06_GE3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 119A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6495 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 175W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | SQP120 |
| Gate Charge (Qg) (Max) @ Vgs | 145 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SQP120N06-3M5L_GE3 | SQP120N06-6M7_GE3 | SQP120N10-09_GE3 | SQP120N10-3M8_GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET N-CH 60V 120A TO220AB | MOSFET N-CH 60V TO220AB | MOSFET N-CH 100V 120A TO220AB | MOSFET N-CH 100V 120A TO220AB |
| Series | TrenchFET® | - | TrenchFET® | - |
| Packaging | Tube | Tube | Tube | Tube |
