SRL7-523-D024
lmages are for reference only.SRL7-523-D024
RELAY GEN PURPOSE 7PST 6A 24V
Datasheet-
67,324 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 7PST-5NO/2NC (5 Form A, 2 Form B) 24VDC Coil Through Hole
SRL7-523-D024
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | SRL7, SCHRACK |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 7PST-5NO/2NC (5 Form A, 2 Form B) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 29.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 820 Ohms |
| Base Product Number | SRL7 |
| Product Attribute |  |
 |
 |
 |

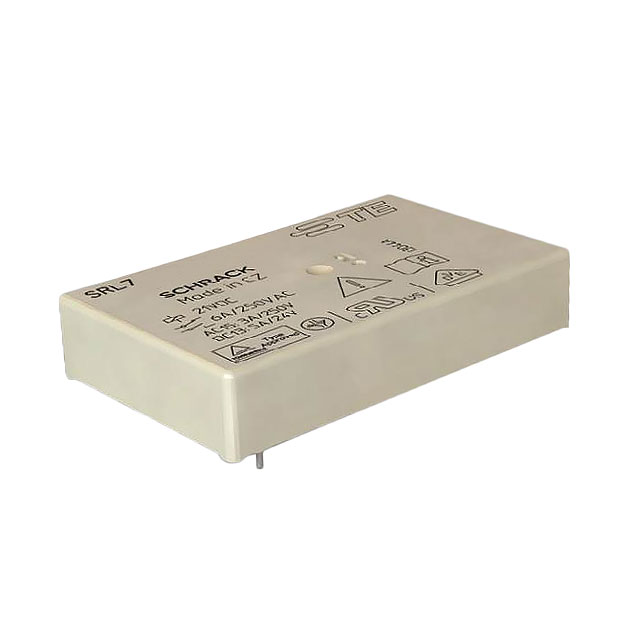

| Part Number | SRL7-523-D012 | SRL7-523-D018 | SRL7-523-D021 | DSP1-DC24V-R-F |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Panasonic Electric Works |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 7PST 6A 12V | RELAY GEN PURPOSE 7PST 6A 18V | RELAY GEN PURPOSE 7PST 6A 21V | RELAY GEN PURPOSE DPST 5A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Panasonic Electric Works |
| Packaging | Tray | Tray | Tray | Tube |
