Product CatalogPart Number
SRP6540-470M
Manufacturer
Bourns Inc.Description
FIXED IND 47UH 1.6A 366 MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
66,227 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SRP6540-470M
SRP6540-470M
lmages are for reference only.Payment Methods
Delivery Services
47 µH Shielded Drum Core, Wirewound Inductor 1.6 A 366mOhm Max Nonstandard
Quick Inquiry
SRP6540-470M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | SRP6540 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 366mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.256" W (7.20mm x 6.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | SRP6540 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

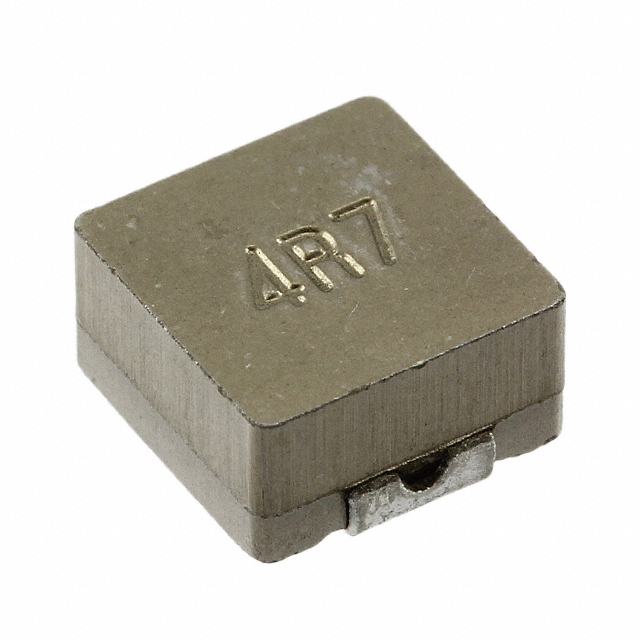

| Part Number | SRP6540-4R7M | SRP6540-100M | SRP6540-150M | SRP6540-1R0M |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4.7UH 6A 33.5 MOHM SMD | FIXED IND 10UH 4A 78.5 MOHM SMD | FIXED IND 15UH 2.9A 121 MOHM SMD | FIXED IND 1UH 12A 7.2 MOHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

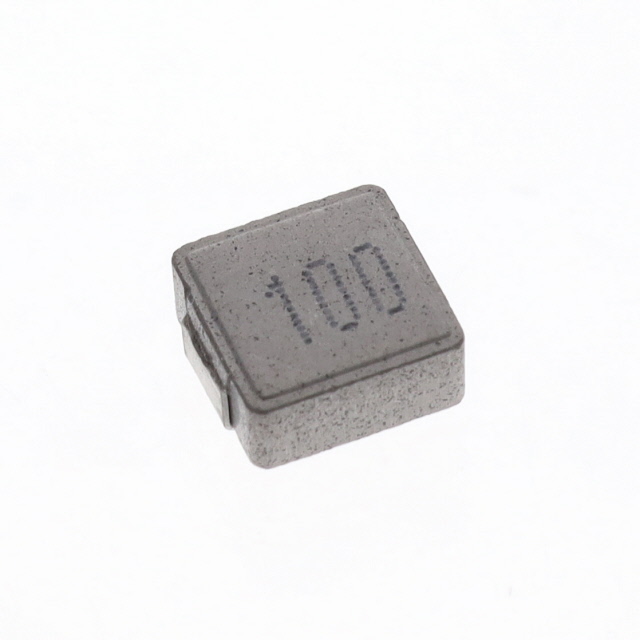

SRP6530A-100M
Bourns Inc.

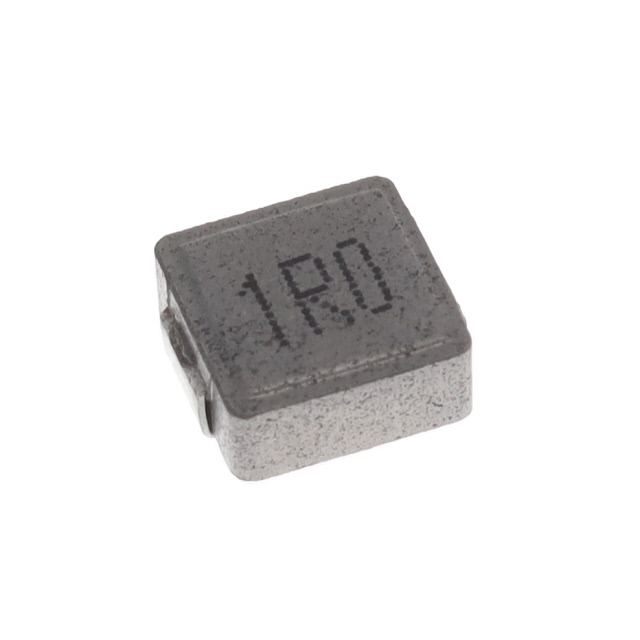

SRP6530A-1R0M
Bourns Inc.

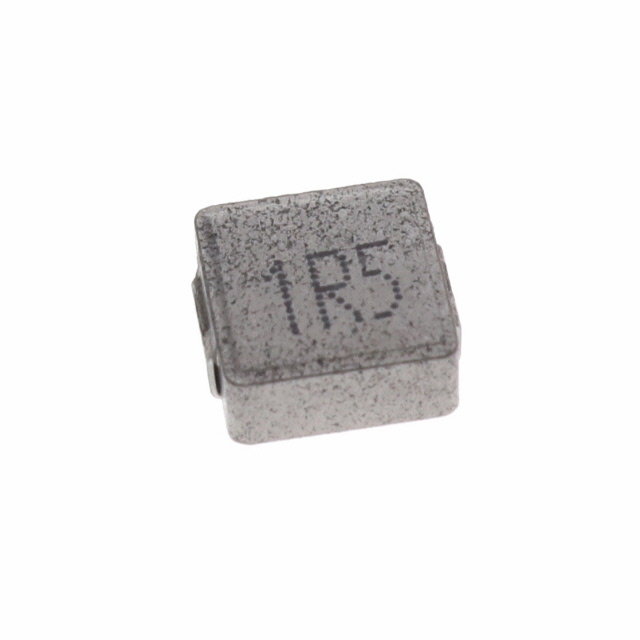

SRP6530A-1R5M
Bourns Inc.
SRP6530A-2R2M
Bourns Inc.

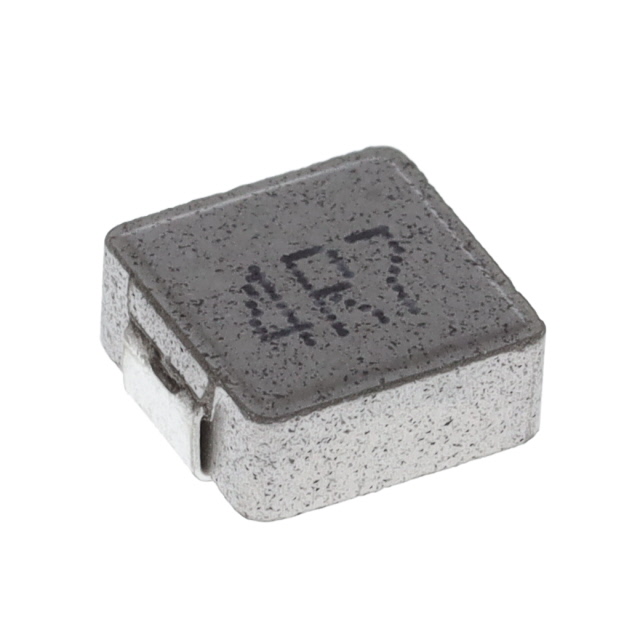

SRP6530A-4R7M
Bourns Inc.

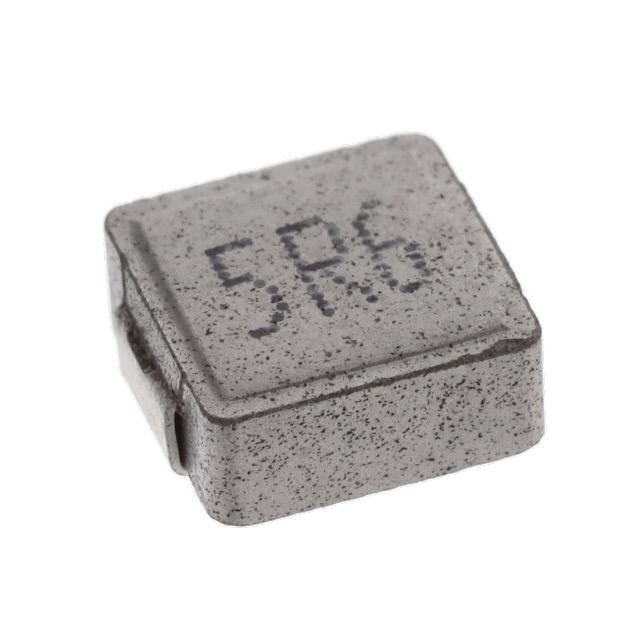

SRP6530A-5R6M
Bourns Inc.

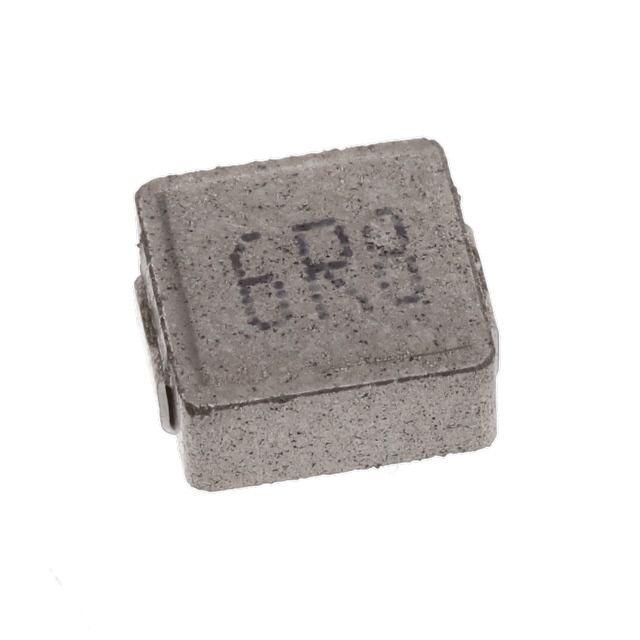

SRP6530A-6R8M
Bourns Inc.

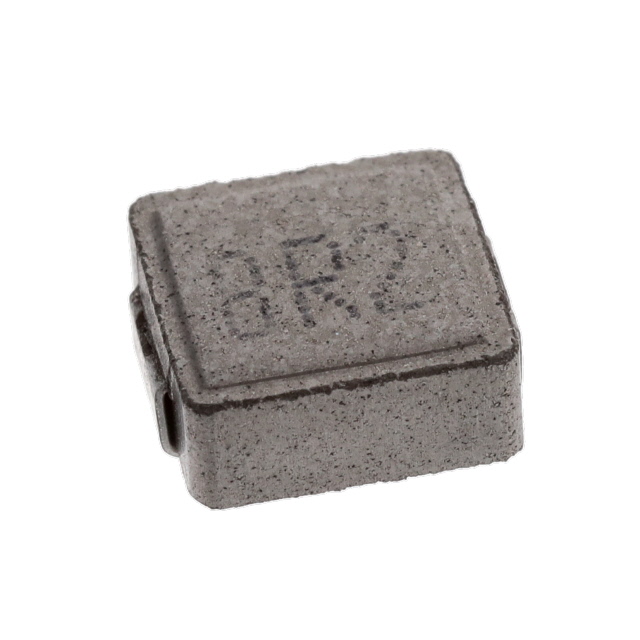

SRP6530A-8R2M
Bourns Inc.
SRP6530A-R10M
Bourns Inc.
SRP6530A-R22M
Bourns Inc.

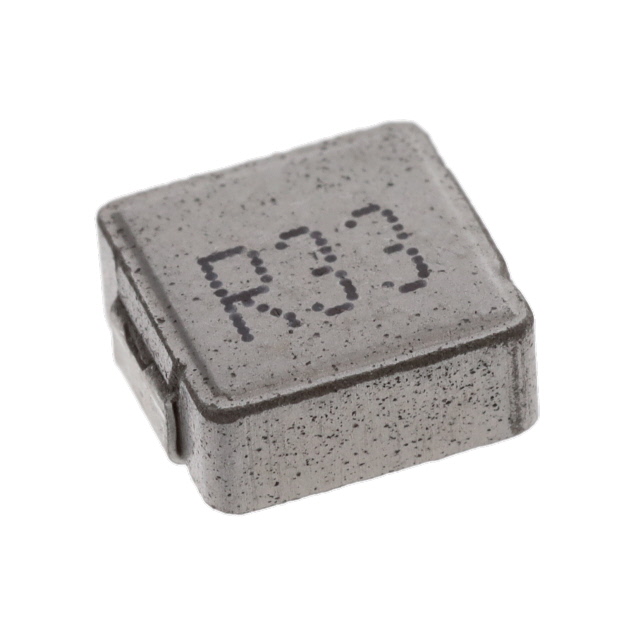

SRP6530A-R33M
Bourns Inc.

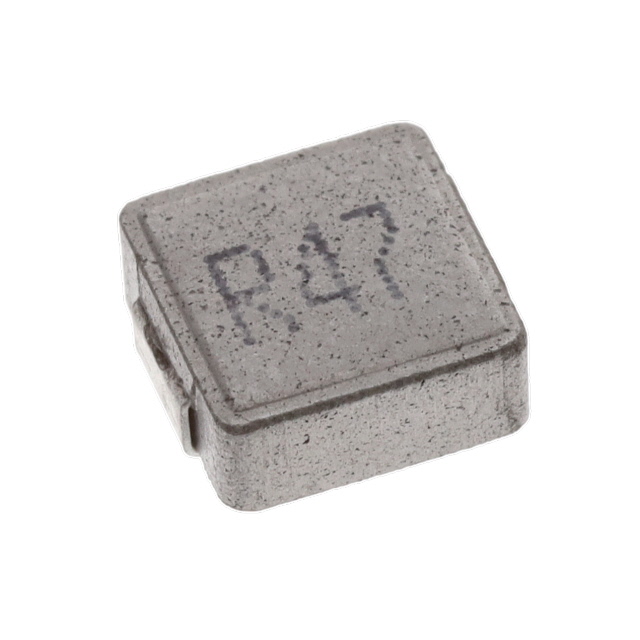

SRP6530A-R47M
Bourns Inc.
SRP6530A-R56M
Bourns Inc.

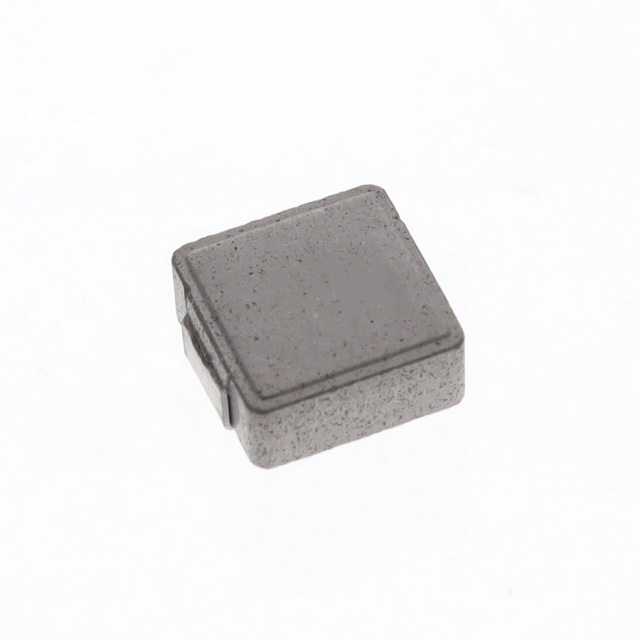

SRP6530A-R68M
Bourns Inc.

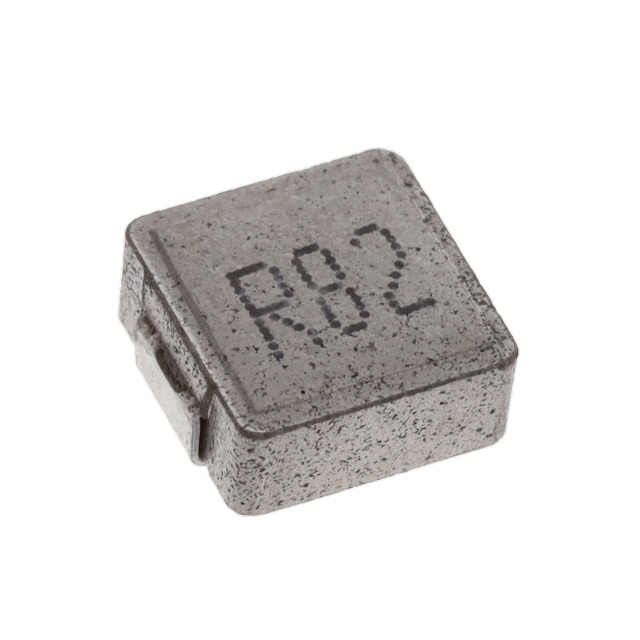

SRP6530A-R82M
