SS-5-630MA-AP

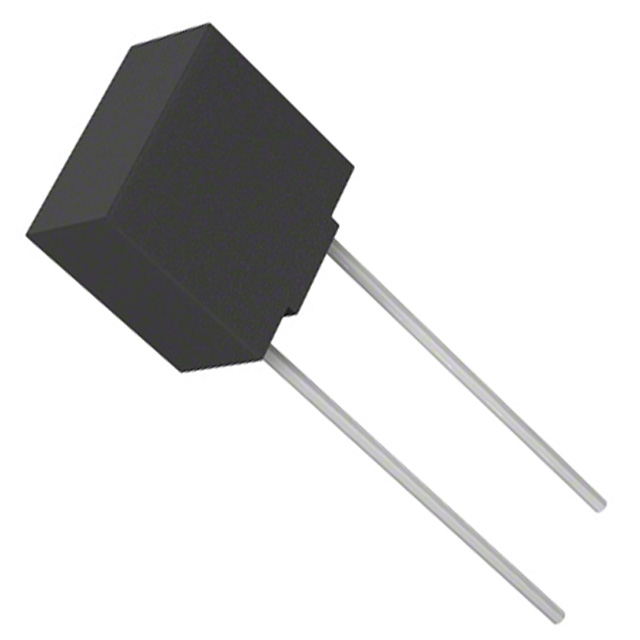

lmages are for reference only.SS-5-630MA-AP
FUSE BRD MNT 630MA 250VAC RADIAL
DatasheetRadial, Box
99,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
630 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
SS-5-630MA-AP
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | SS-5 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 630 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Slow Blow |
| Package / Case | Radial, Box |
| Breaking Capacity @ Rated Voltage | 35A |
| Melting I²t | 1.51 |
| Approval Agency | CQC, cULus, EK-MARK, SEMKO, VDE |
| Operating Temperature | -40°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.14 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | SS-5-630MA-BK | SS-5-1.25A-AP | SS-5-1.25A-BK | SS-5-1.6A-AP |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE BRD MNT 630MA 250VAC RADIAL | FUSE BRD MNT 1.25A 250VAC RADIAL | FUSE BRD MNT 1.25A 250VAC RADIAL | FUSE BOARD MNT 1.6A 250VAC RAD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
