SSCSMNN001BGAA5

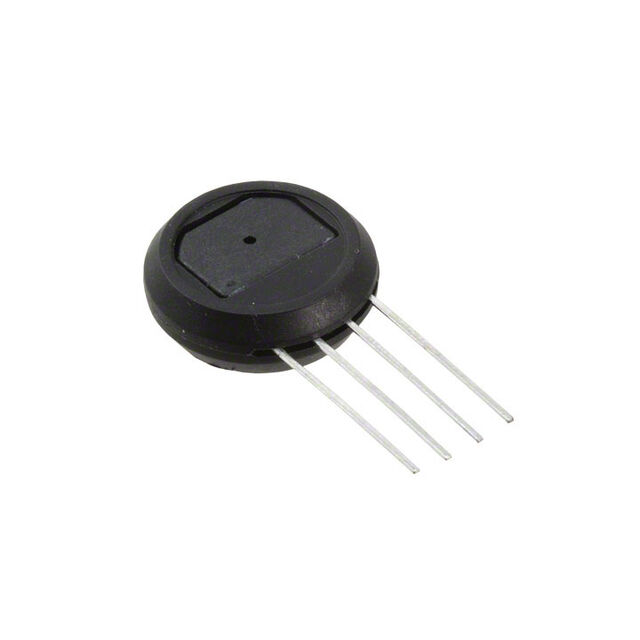

lmages are for reference only.SSCSMNN001BGAA5
SENSOR 14.5PSIG 4.5V 4SIP
Datasheet4-SIP Module
69,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 14.5PSI (100kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
SSCSMNN001BGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® SSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SSCSMNN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 14.5PSI (100kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Port Style | No Port |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 29.01PSI (200kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | SSCSMNN001BGAF5 | SSCSMNN001BGAF5 | SSCSMNN010BGAA5 | SSCSMNN010BGAF5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR 14.5PSIG 4.7V 4SIP | SENSOR 14.5PSIG 4.7V 4SIP | SENSOR 145.04PSIG 4.5V 4SIP | TRUESTABILITY PRESSURE SENSOR |
| Series | TruStability® SSC | TruStability® SSC | TruStability® SSC | TruStability® SSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |

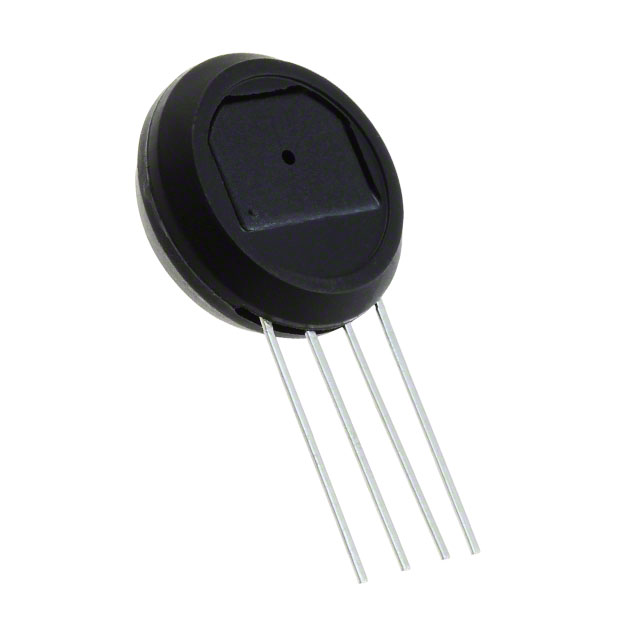

Recommended Products
