SSFQ3712
lmages are for reference only.SSFQ3712
MOSFET N/P-CH 30V 8A 8SOP
Datasheet8-SOIC (0.154", 3.90mm Width)
84,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 8A (Tc), 5.5A (Tc) 2.5W (Tc) Surface Mount 8-SOP
SSFQ3712
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel Complementary |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc), 5.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 8A, 10V, 50mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V, 7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 500pF @ 25V, 810pF @ 15V |
| Power - Max | 2.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
.jpg "SSM6P35FE(TE85L,F)") |
 |

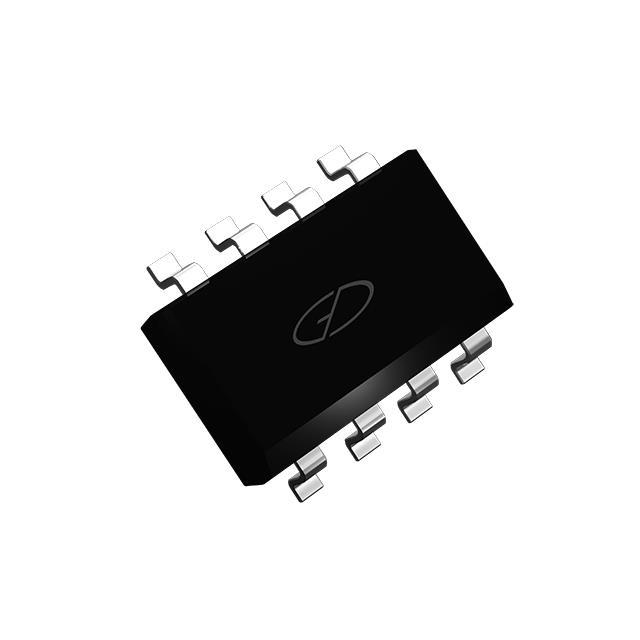

| Part Number | SSFQ3805 | SSFQ3812 | SSM6P35FE(TE85L,F) | SSF2145CH6 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Toshiba Semiconductor and Storage | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 30V 18.4A 8SOP | MOSFET 2N-CH 30V 7.5A 8SOP | MOSFET 2P-CH 20V 0.1A ES6 | MOSFET 20V 4.8A 6TSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
