SSFQ3905
lmages are for reference only.SSFQ3905
MOSFET, P-CH, SINGLE, -10A, -30V
Datasheet8-SOIC (0.154", 3.90mm Width)
25,353 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 10A 2.5W Surface Mount 8-SOP
SSFQ3905
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15.5mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 14.6 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

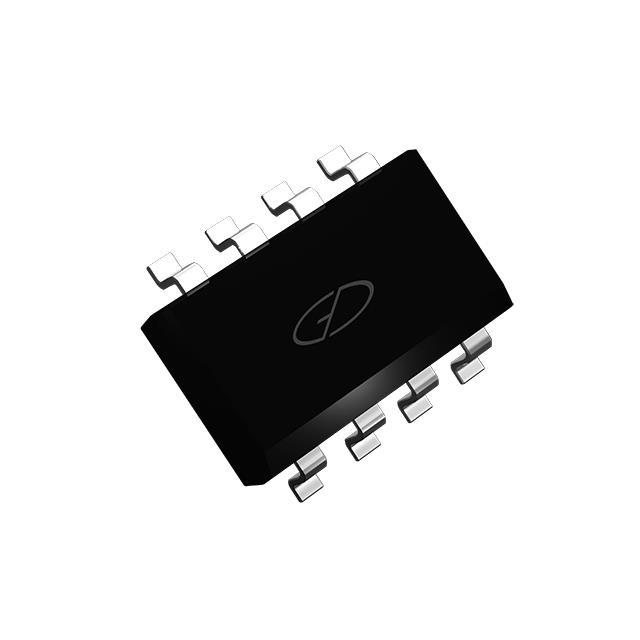

| Part Number | SSFQ3903 | SSFQ3907 | SSFQ3910 | SS07N70AKMA1 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET, P-CH, SINGLE, -13A, -30V | MOSFET, P-CH, SINGLE, -8A, -30V, | MOSFET, N-CH, SINGLE, 10A, 30V, | MOSFET N-CH |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
