SSL-LX20465GD
lmages are for reference only.SSL-LX20465GD
LED GREEN DIFF T-2MM TAPER T/H
DatasheetRadial
75,212 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green LED Indication - Discrete 2.2V Radial
SSL-LX20465GD
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Standard |
| Lens Color | Green |
| Lens Transparency | Diffused |
| Millicandela Rating | 10mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-2mm Taper Body |
| Size / Dimension | - |
| Height (Max) | 5.00mm |
| Base Product Number | SSL-LX20465 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

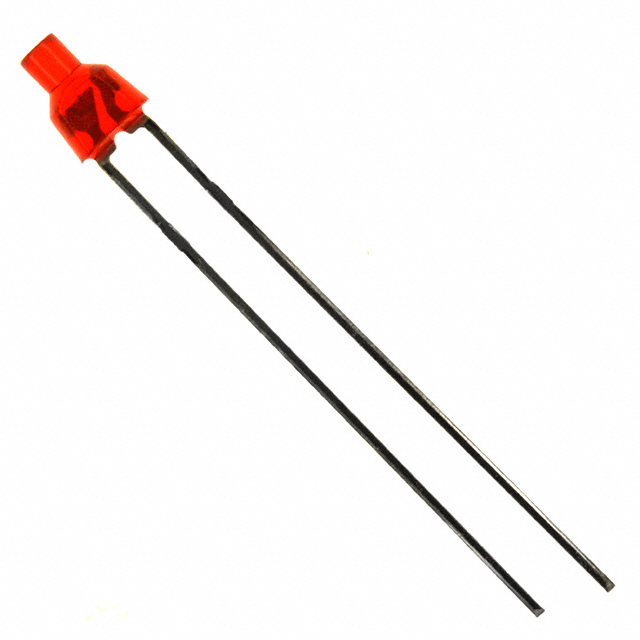

| Part Number | SSL-LX20465HD | SSL-LX20465ID | SSL-LX20465LAD | SSL-LX20465LGD |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFF T-2MM TAPER T/H | LED RED DIFF T-2MM TAPER T/H | LED AMBER DIFF T-2MM TAPER T/H | LED GREEN DIFF T-2MM TAPER T/H |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
