SSL-LXA228YC-TR31
lmages are for reference only.SSL-LXA228YC-TR31
LED YL CLR AXIAL SMD BOTTOM ENT
Datasheet2-SMD, Z-Bend
57,383 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow LED Indication - Discrete 2V 2-SMD, Z-Bend
SSL-LXA228YC-TR31
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | - |
| Wavelength - Peak | 585nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend |
| Supplier Device Package | Axial |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Height (Max) | 2.90mm |
| Base Product Number | SSL-LXA228 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

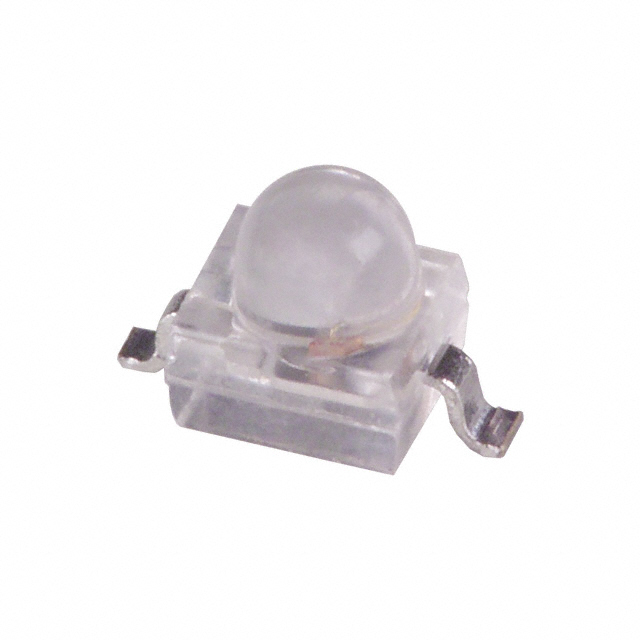

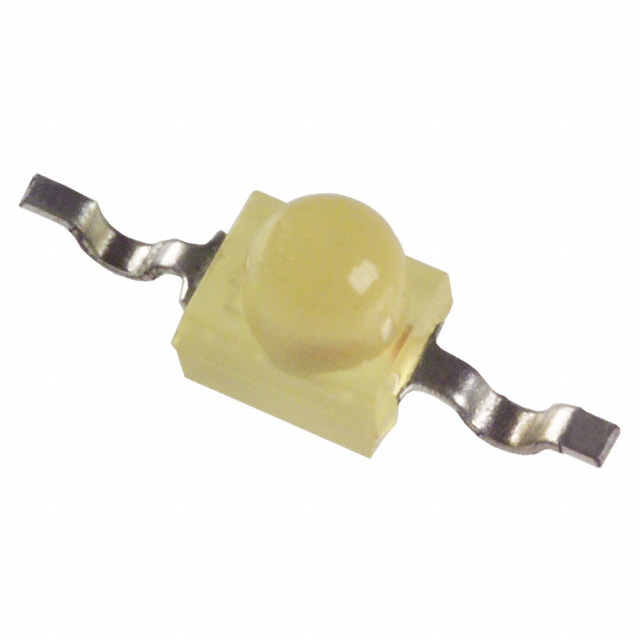

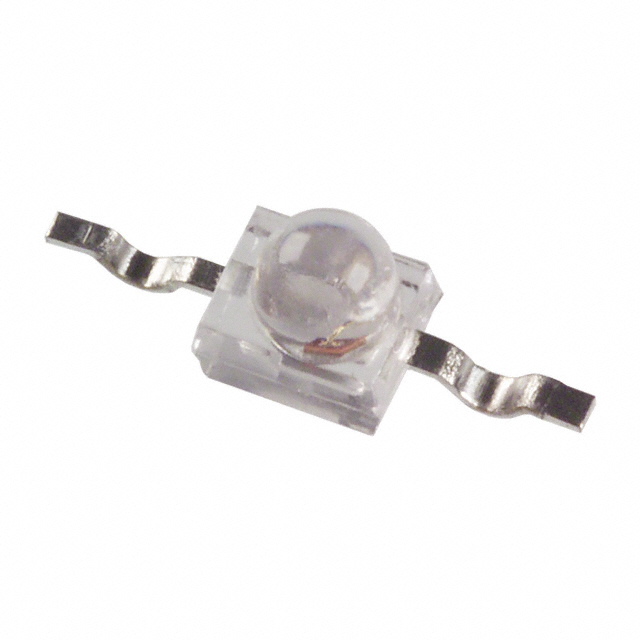

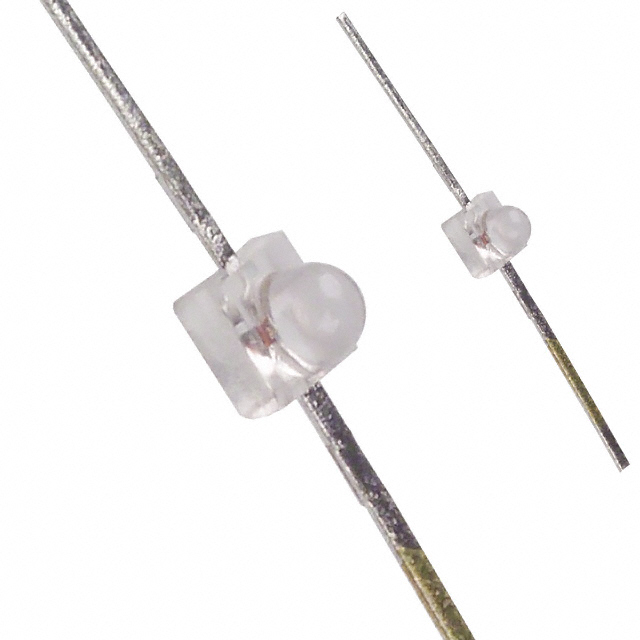

| Part Number | SSL-LXA228YC-TR11 | SSL-LXA228YC-TR21 | SSL-LXA228YC | SSL-LXA228YD-TR21 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED YELLOW CLEAR AXIAL SMD | LED YL CLR AXIAL SMD BOTTOM ENT | LED YELLOW CLEAR AXIAL T/H AXIAL | LED YELLOW DIFFUSED AXIAL SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
